RG
13368541301

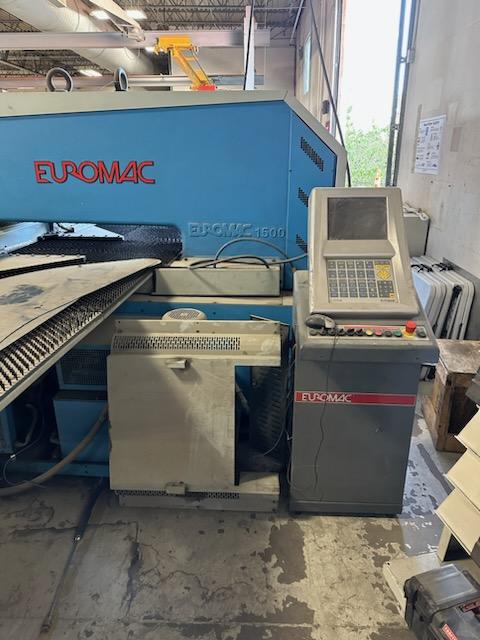

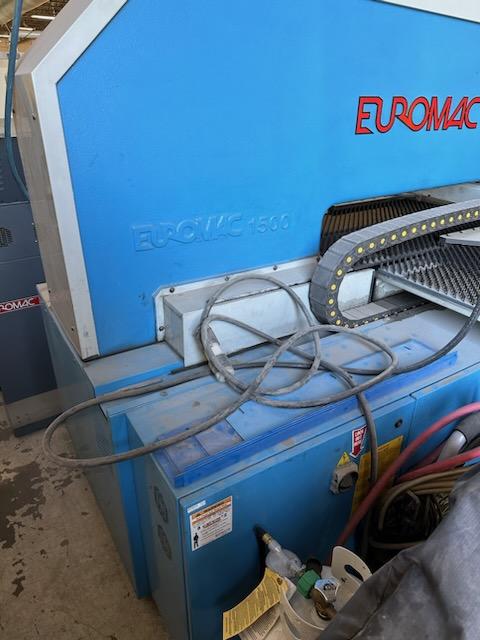

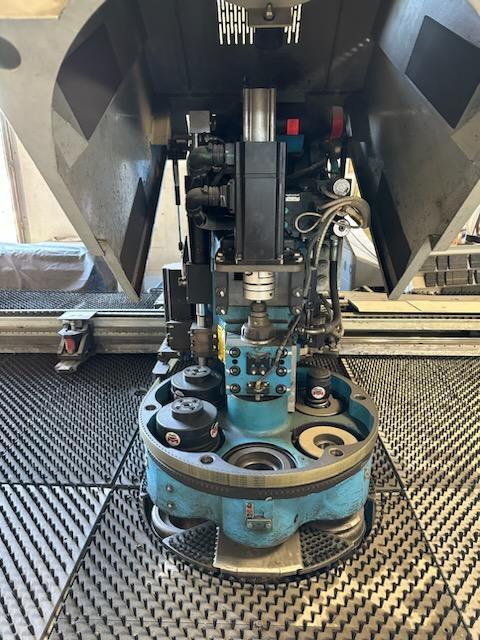

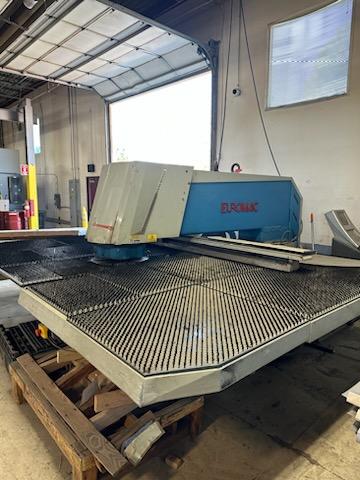

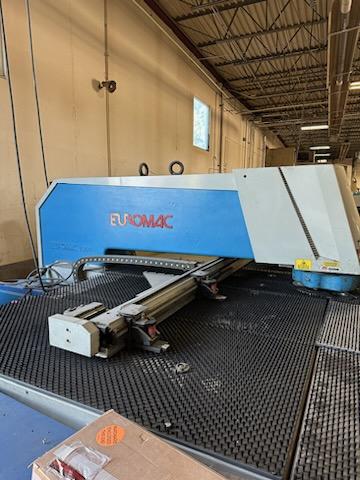

17 Ton Euromac MTXR 1500/22-2000 AutoIndex CNC Turret Punch, 2008
$6,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Punching Force: 25Tons
Y-Axis Stroke with Multitool: 61″
Y-Axis Stroke with Single Tool: 59″
X-Axis Stroke: 49″
X-Axis Stroke: 78″
Automatic Repositioning: up to 393″
Working Height: 38.5″
Strokes/minute:
Nibbling, 0.78″ pitch: 780
Punching, 0.78″ pitch: 300
CPS System-Programmed Control of Speed: Standard
Autoindex Two-Way Stations: 2
Operating System: Windows XP
USB Ports: 2
Network Card: Standard ETHERNET 10/100
Screen: LCD, color – Super VGA – 12.1″
Floppy Disk: 3.5″
Table Dimensions
X-Axis 1250: 87.4″ x 88.9″
X-Axis 2000: 87.4″ x 157″
Max. Punch Diameter: 3.5″
Max. Punch Stroke, Thick Turret: 1″
Max. Opening of Standard Clamps: 0.27″
Electrical: 480V, 60Hz
Motor: 7.5HP
Machine Weight: 16,000 pounds
