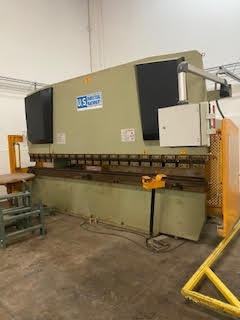

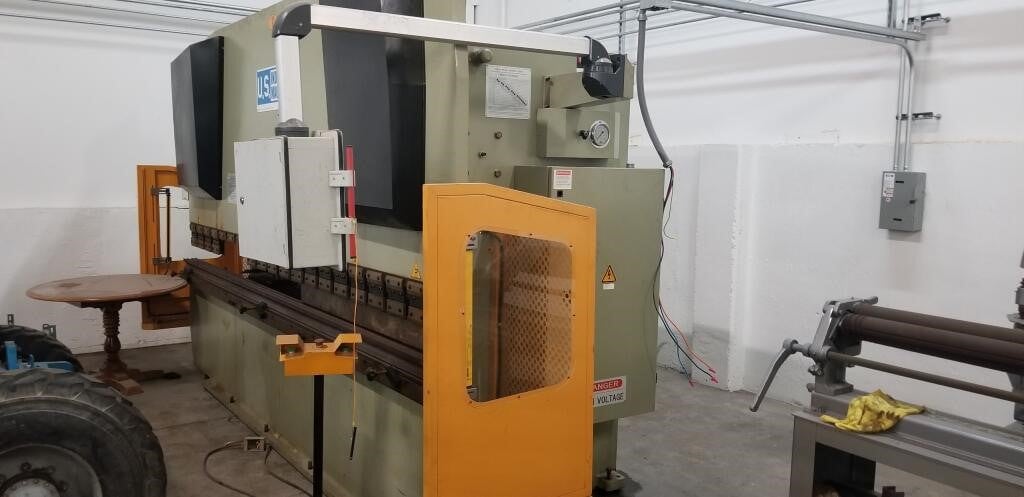

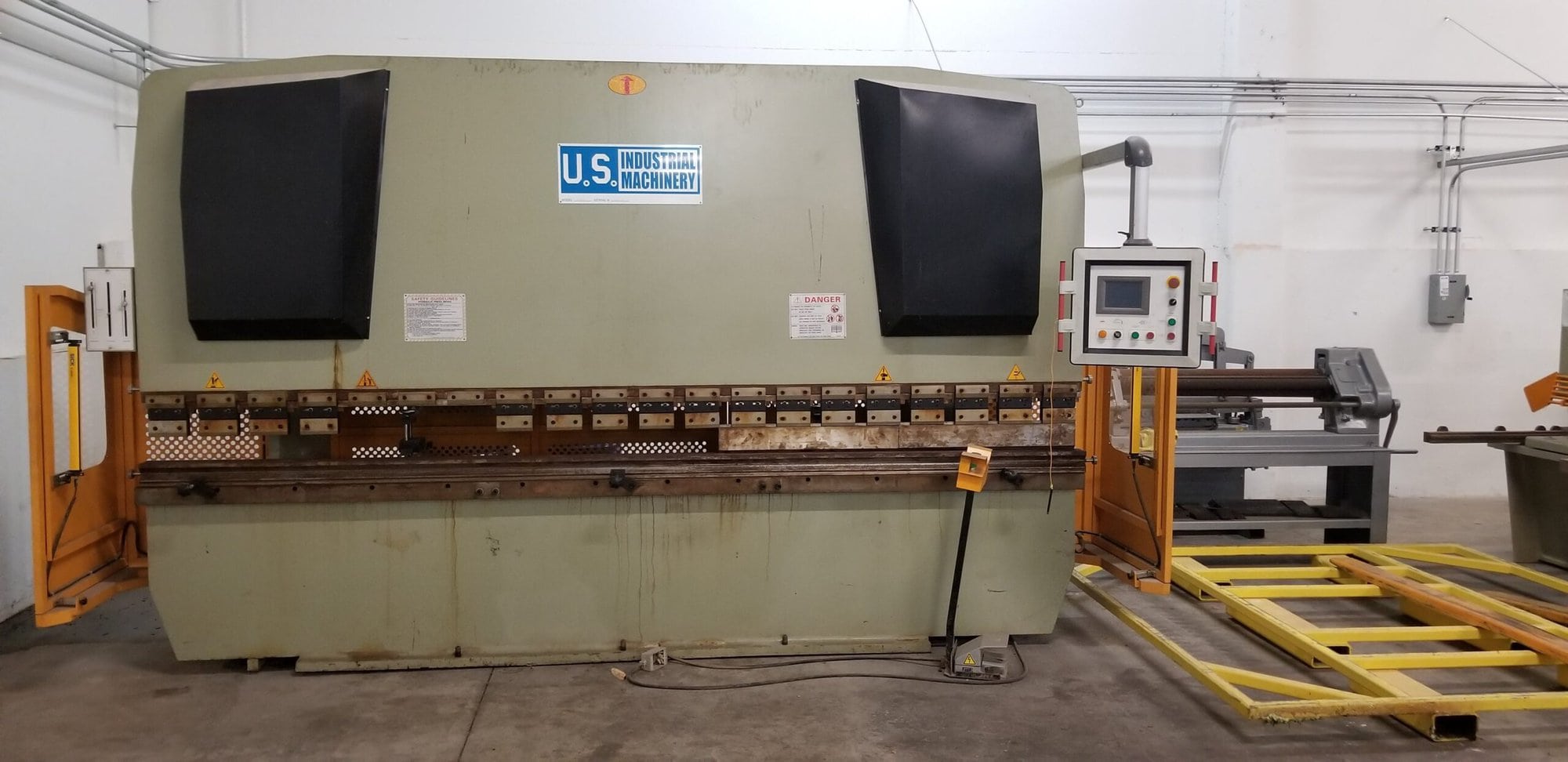

155 Tons X 13′ U.S. Industrial Machinery US 15513 CNC Press Brake
$22,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Working pressure: 155 tons
Length of working table: 125.9″
Distance between housings: 106.2″
Throat depth: 12.5″
Stroke adjustment of ram: 2.75″
Ram travel: 5.9″
Open height: 16.3″
Rapid Ram Travel Speed: 2.4”/sec.
Rapid Ram Retreat Speed: 2.0”/sec.
Pressing Speed: Dependent on Tool Load
Backgauge Travel: 24″
Hydraulic oil capacity: 79 gals.
Motor: 15 HP
Dimensions: 148″ x 64″ x 101″
Weight approx.: 22,046 lbs
