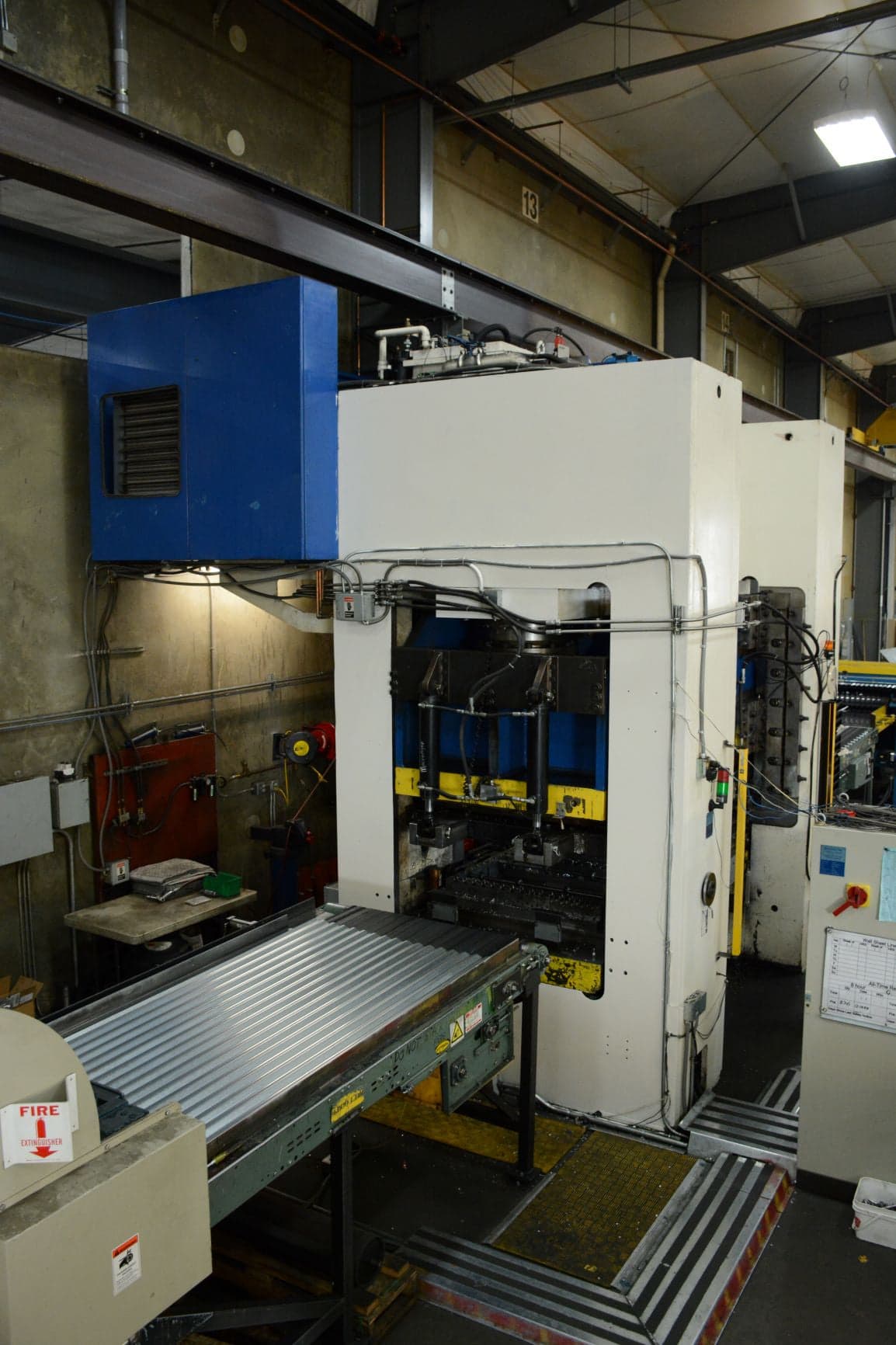

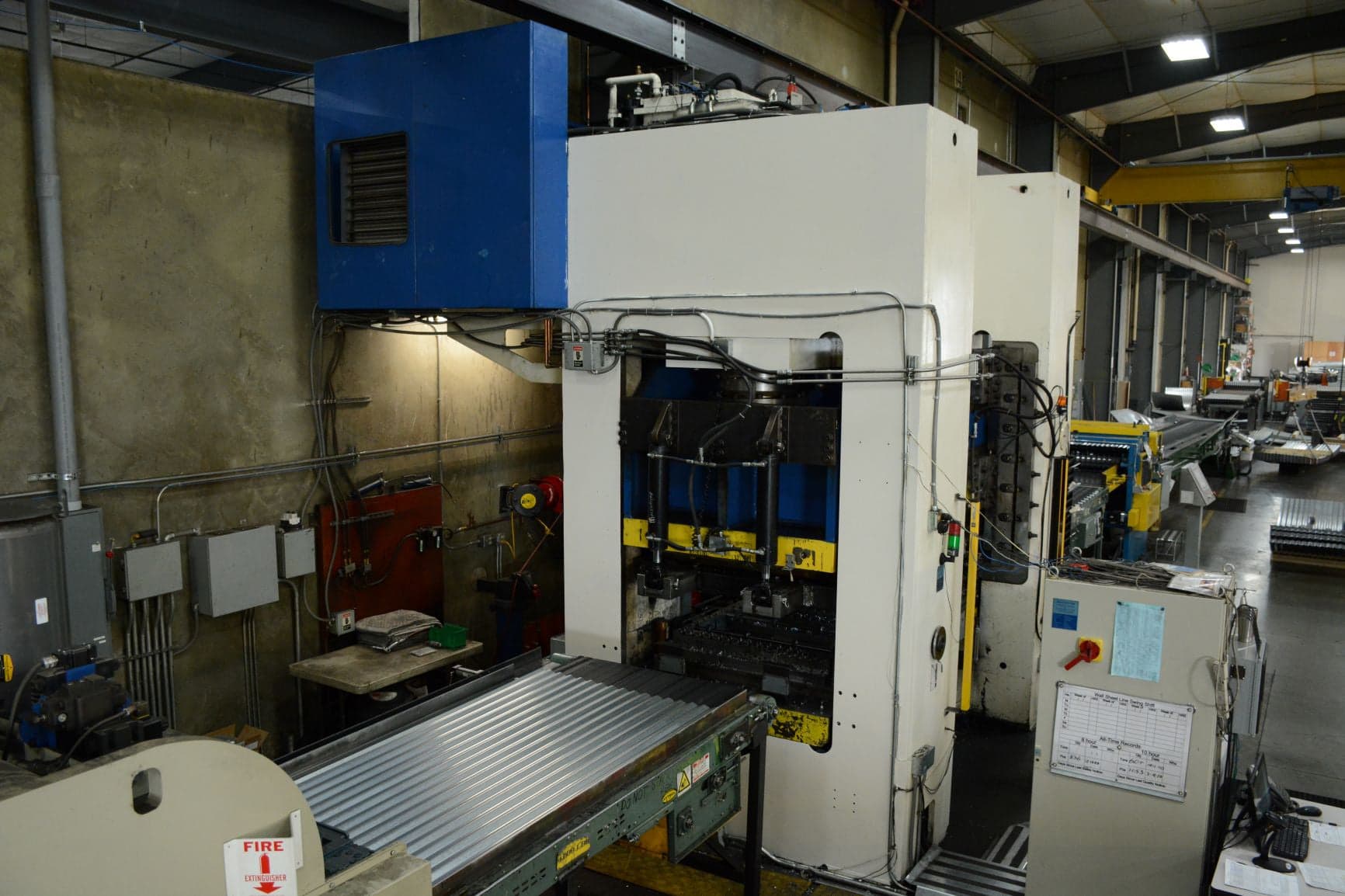

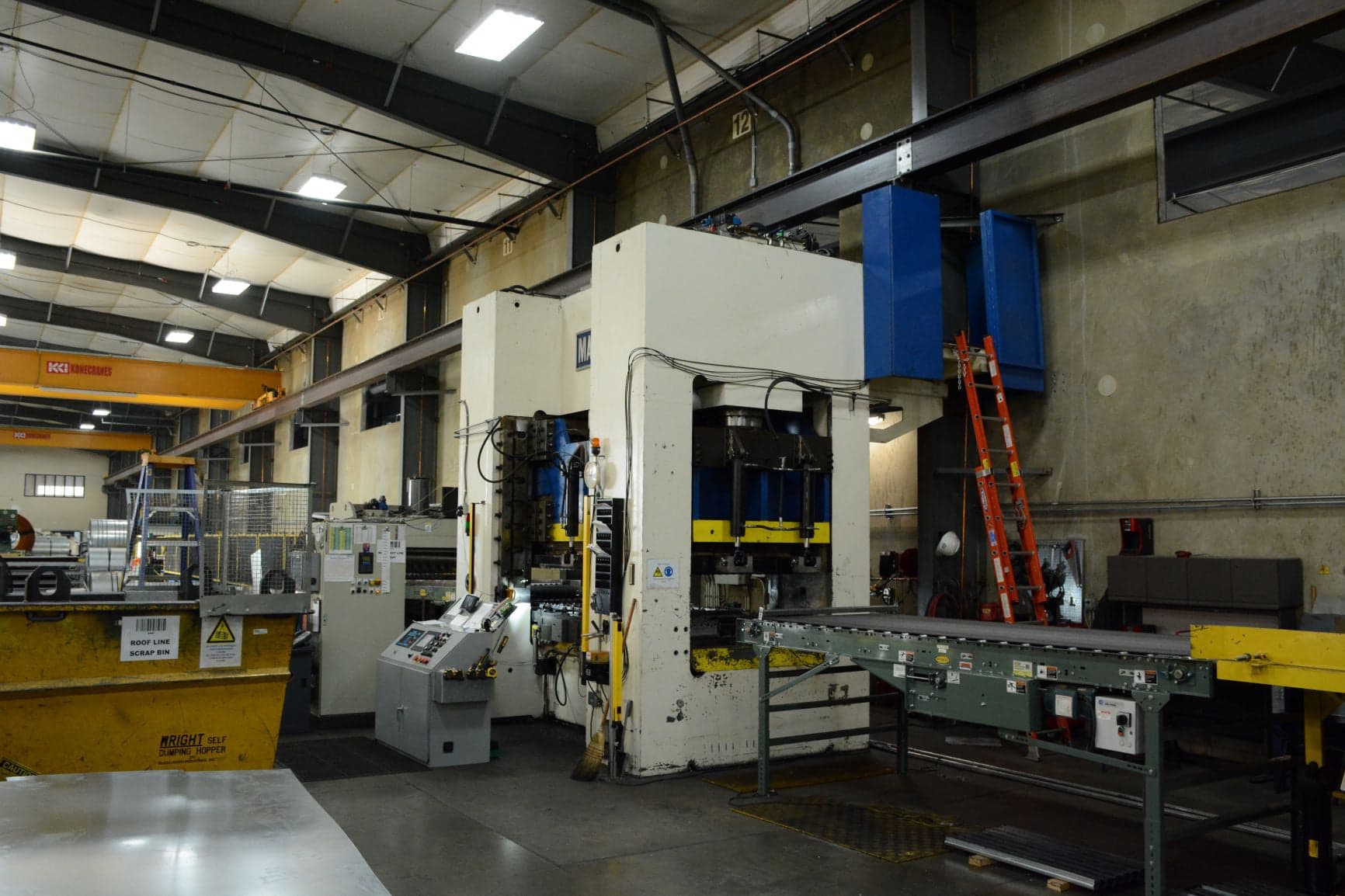

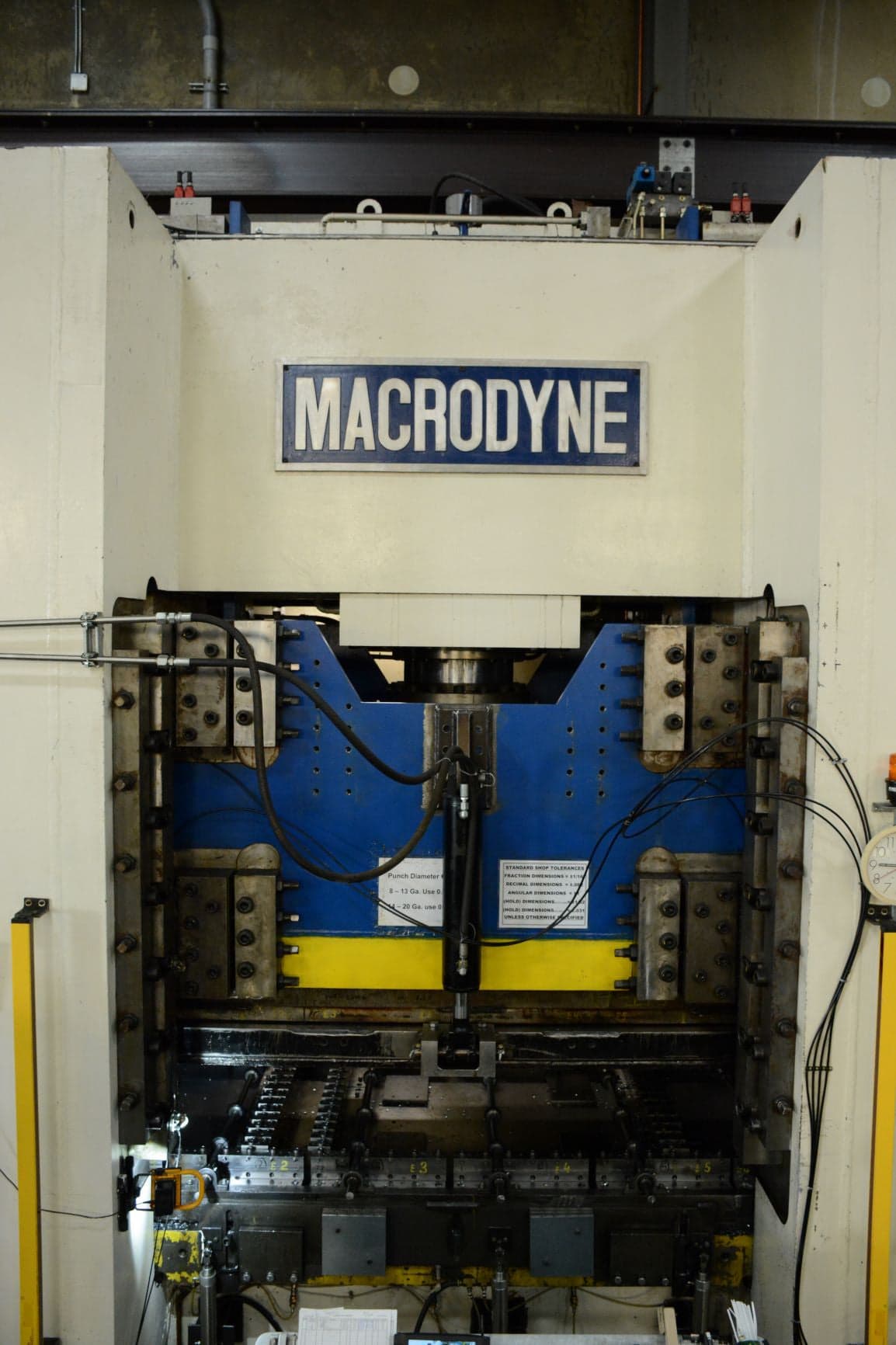

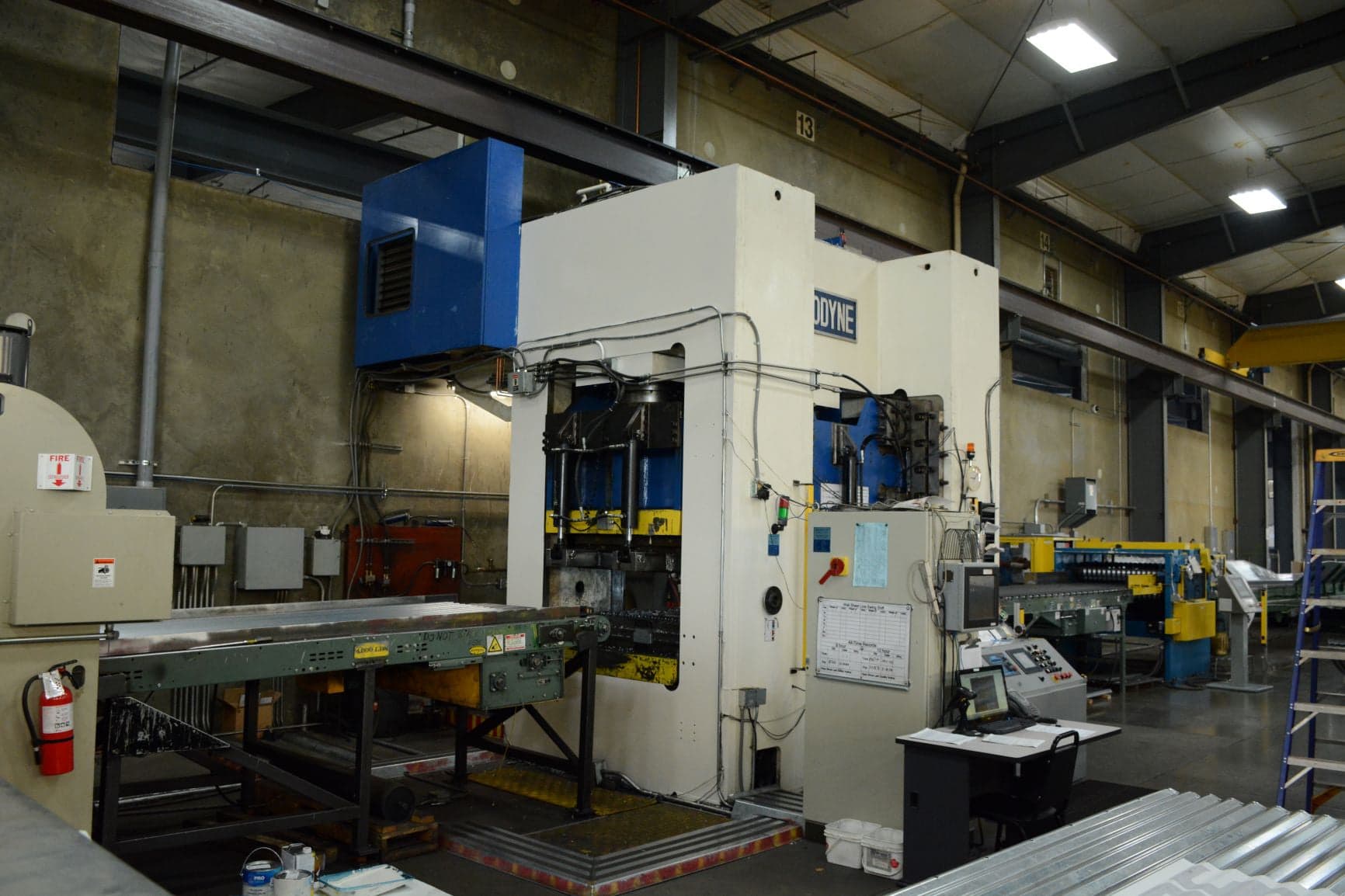

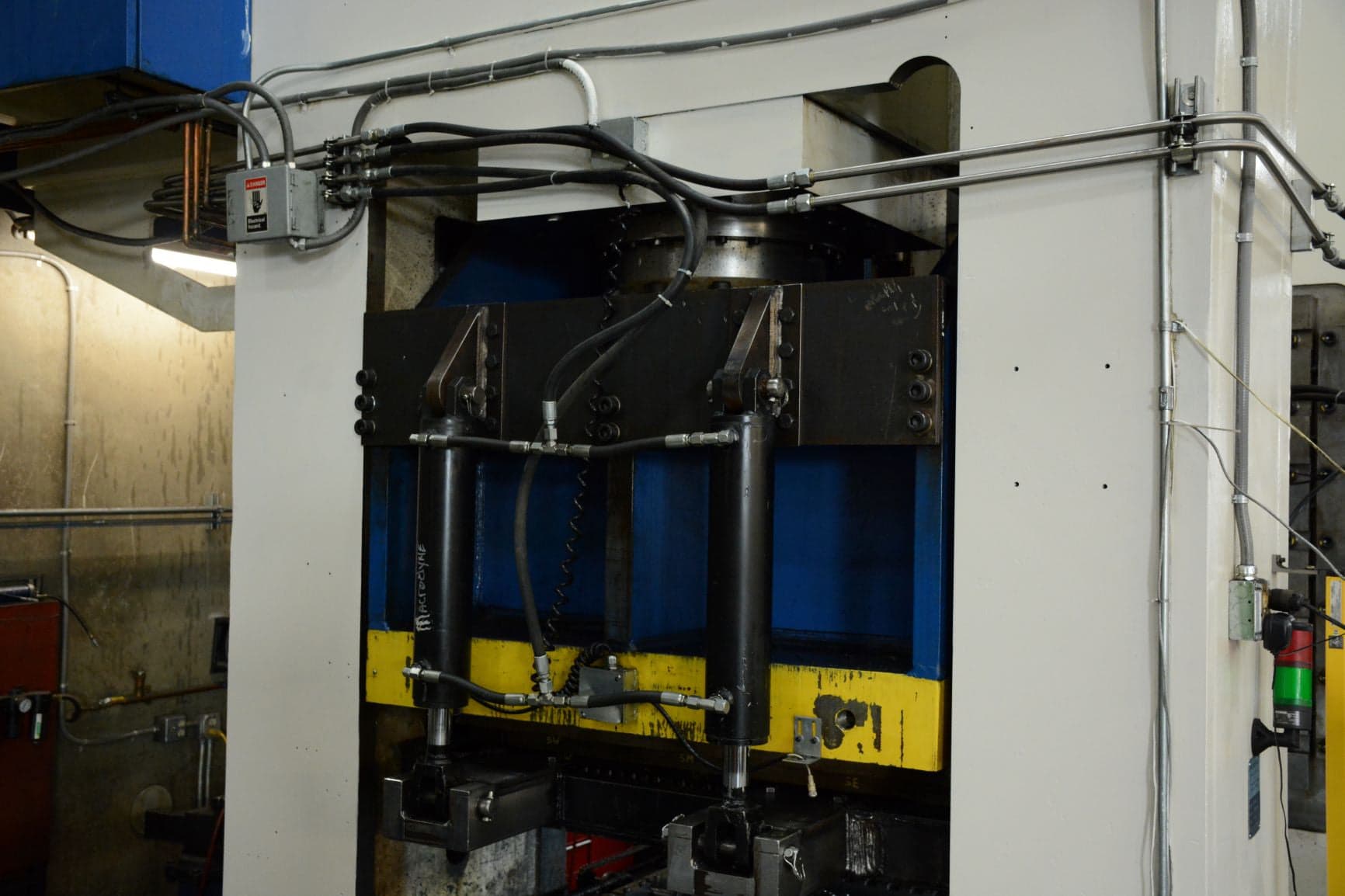

1500 Ton Macrodyne MPZ1500 4-Post Hydraulic Press, 2004
$95,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Tonnage Capacity: 1500 Ton
Lifting Force: 12 Ton
Stripping Force: 100 Ton
Bed Area: 54″ x 144″
Bed Area Between Frame: 56″ x 76″
Stroke Length: 16″
Shut Height: 16″
Open Height: 32″
Pass Line: 38″
Windows (Width): 56″
Fast Approach Speed 7.5″ @ 100 IPM: 4.5 Seconds
Press Speed 05″ @ 6IPM: 5.0 Seconds
Fast Return Speed 8″ @ 100 IPM: 4.8 Seconds
Total Press Cycle Time: 15 Seconds
Main Motor: 60 HP
Approximate Shipping Weight: 215,000 Lbs.
EQUIPPED WITH:

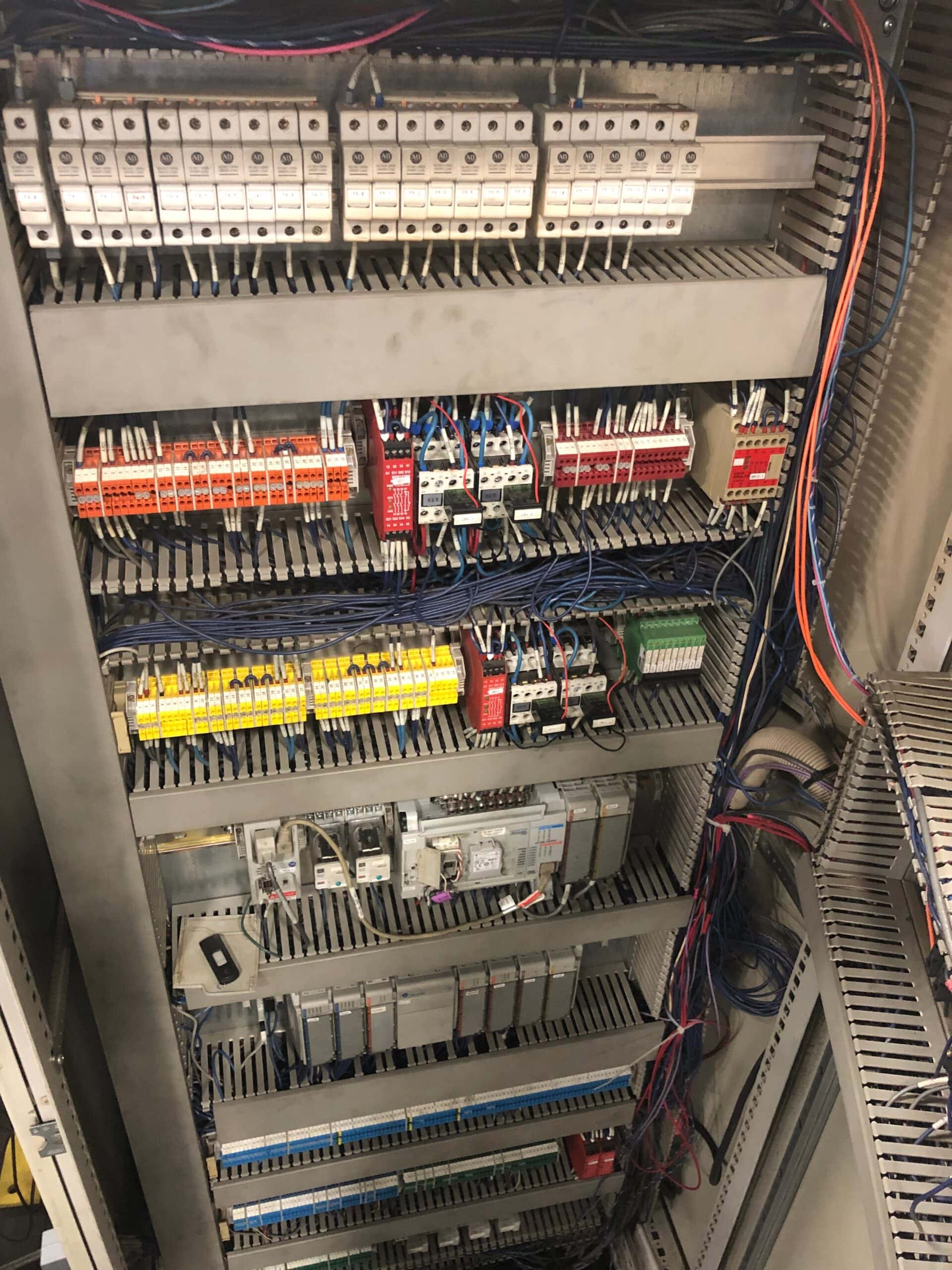

Allen Bradley Micrologix 1500 PLC Based Electrical Control Package
Allen Bradley Panelview 300 Operator Interface Unit
(2) Single-Acting Main Press Cylinders
(1) Double-Acting Pressing/Pull-Back Cylinder

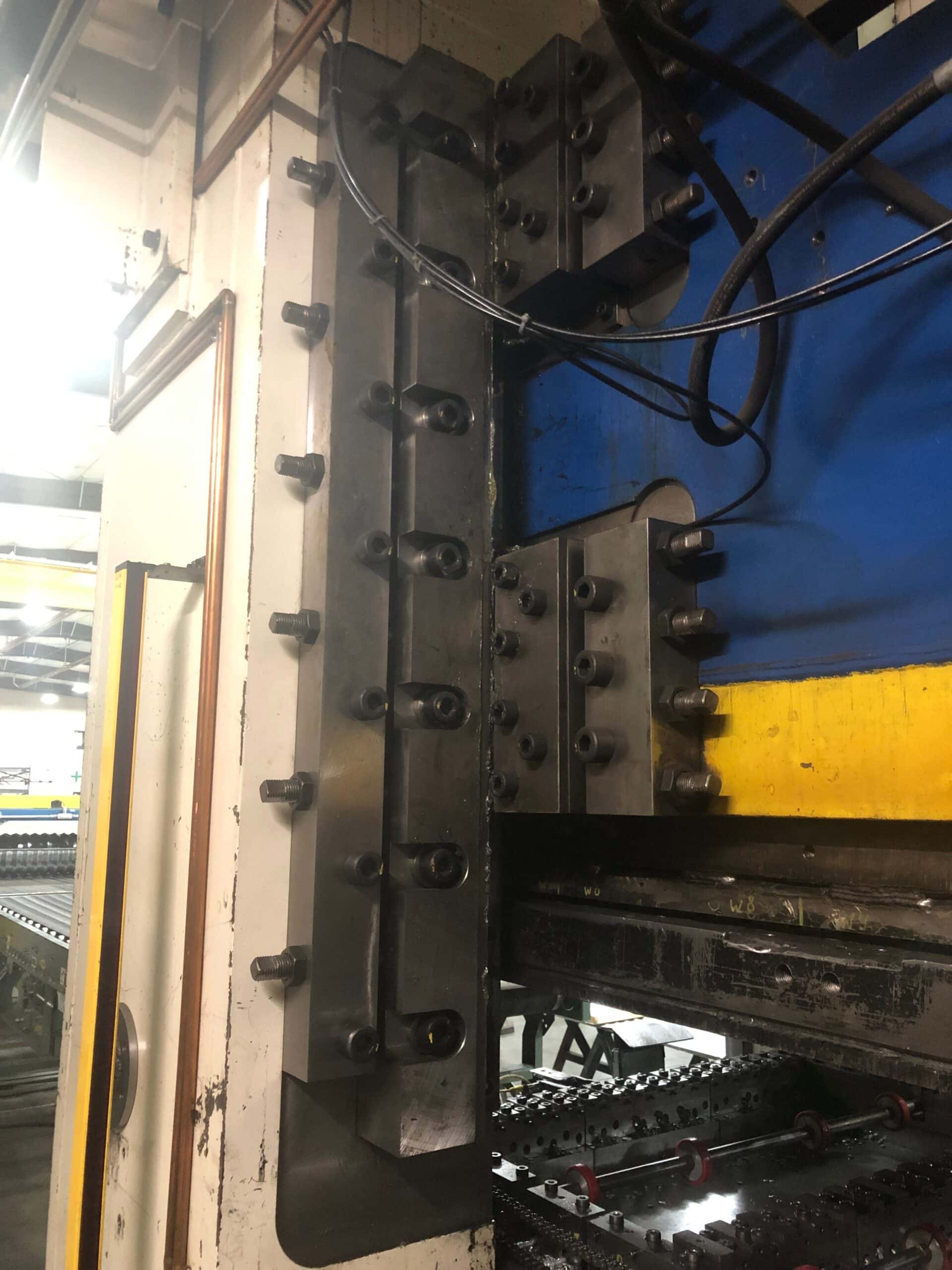

Adjustable Self-Lubricated 8-Point Prismatic Guide for Slide
Fabricated Slide with Flat Machined Working Surface (no T-slots)
Fabricated Bed with Flate Machined Working Surface (no T-slots)
All Electrical will Operate from a single 480 V/3 PH/60 hertz supply
* Excellent Condition *
