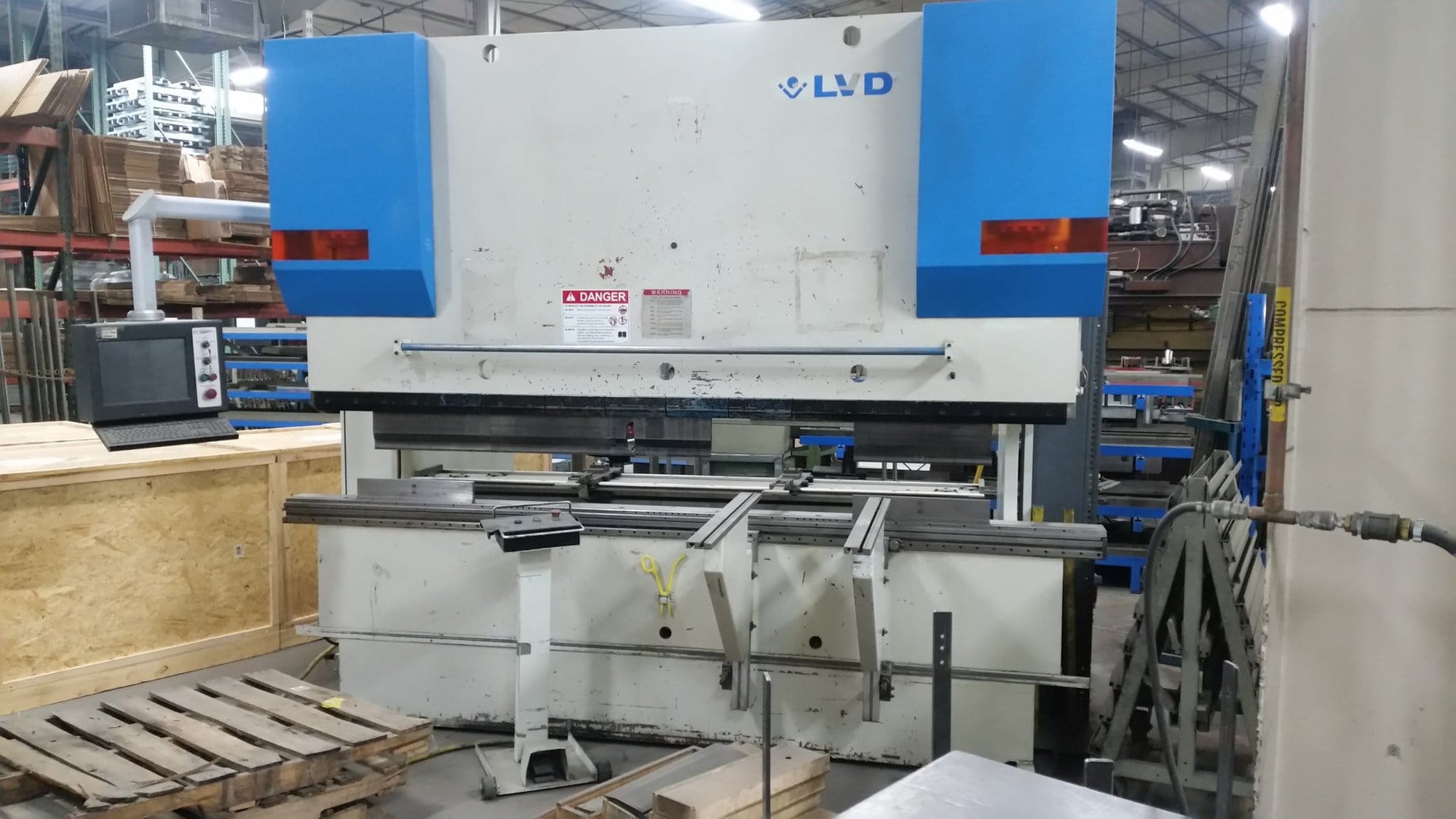

150 Ton X 10′ LVD 150 BH 10 CAD CNC Press Brake, 1998 – 4 Axis Back Gauge
$28,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
TONNAGE 150 TONS
OVERALL LENGTH 10′
DISTANCE BETWEEN HOUSINGS 8’6″
STROKE 7.9″
OPEN HEIGHT 15.75″
THROAT DEPTH 15.75″
MAXIMUM SPEED:
RAPID APPROACH 368 IPM
PRESS SPEED 2 – 59 IPM
RETURN SPEED 326 IPM
APPROX WEIGHT 22,000 LBS
OVERALL DIMENSIONS 135″ X 68″ X 112″ H
460V/3 phase 60Hz.
EQUIPPED WITH:

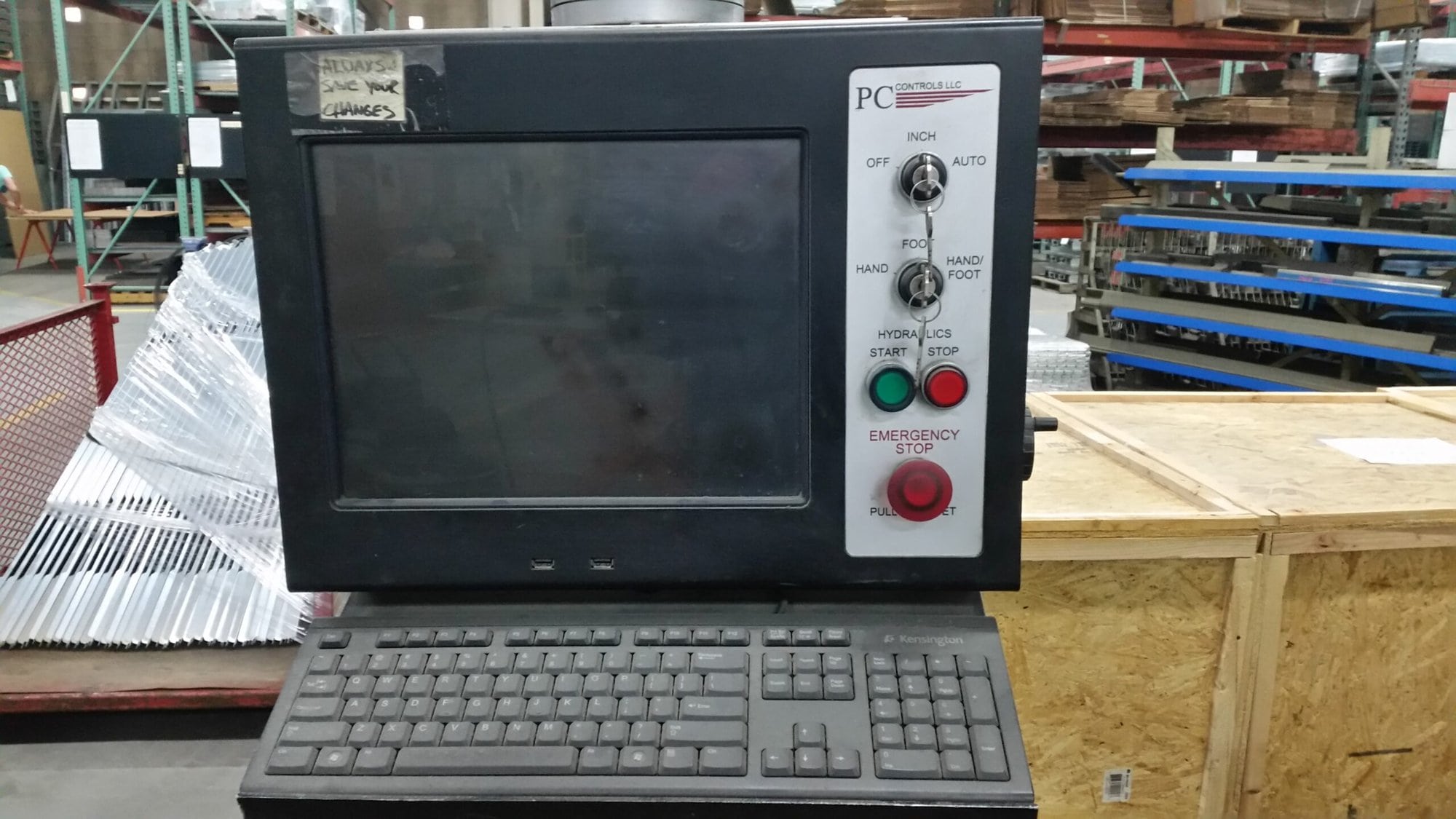

PC Controls control with 4 axis back gauge (X, R, Z1/Z2)
Hydraulic upper tool clamping
Front material support arms
Crowning included
American style tooling included
