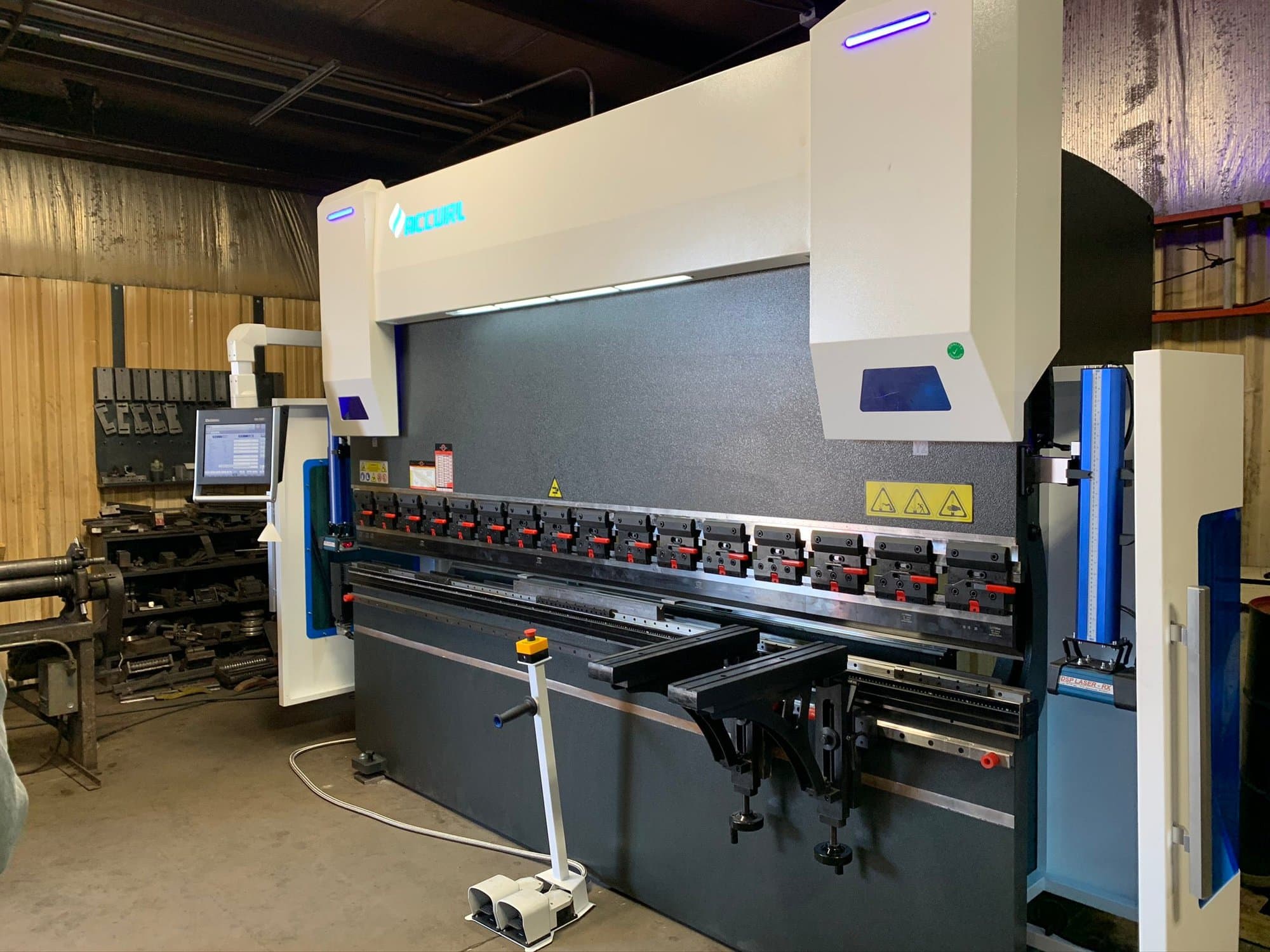

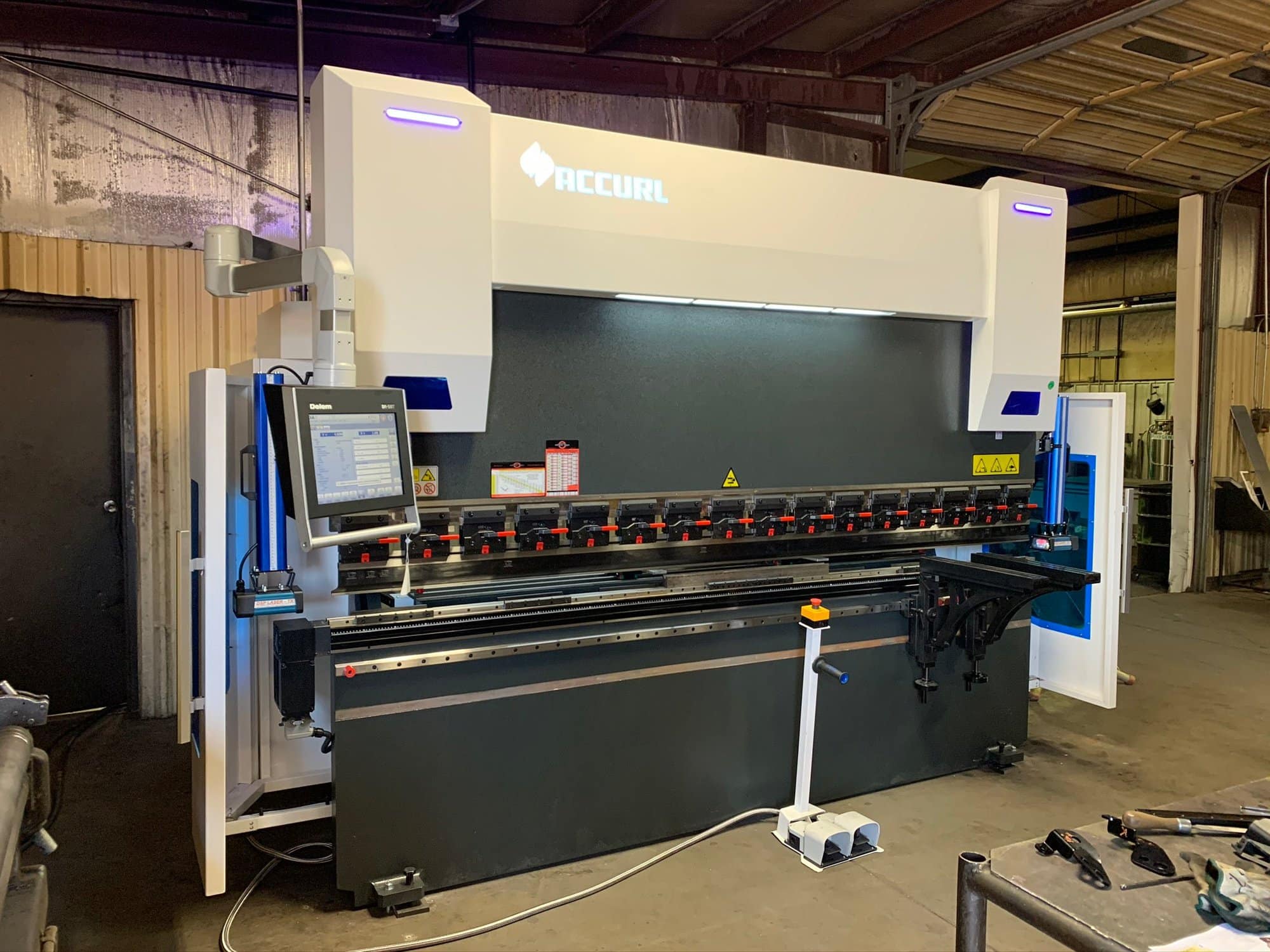

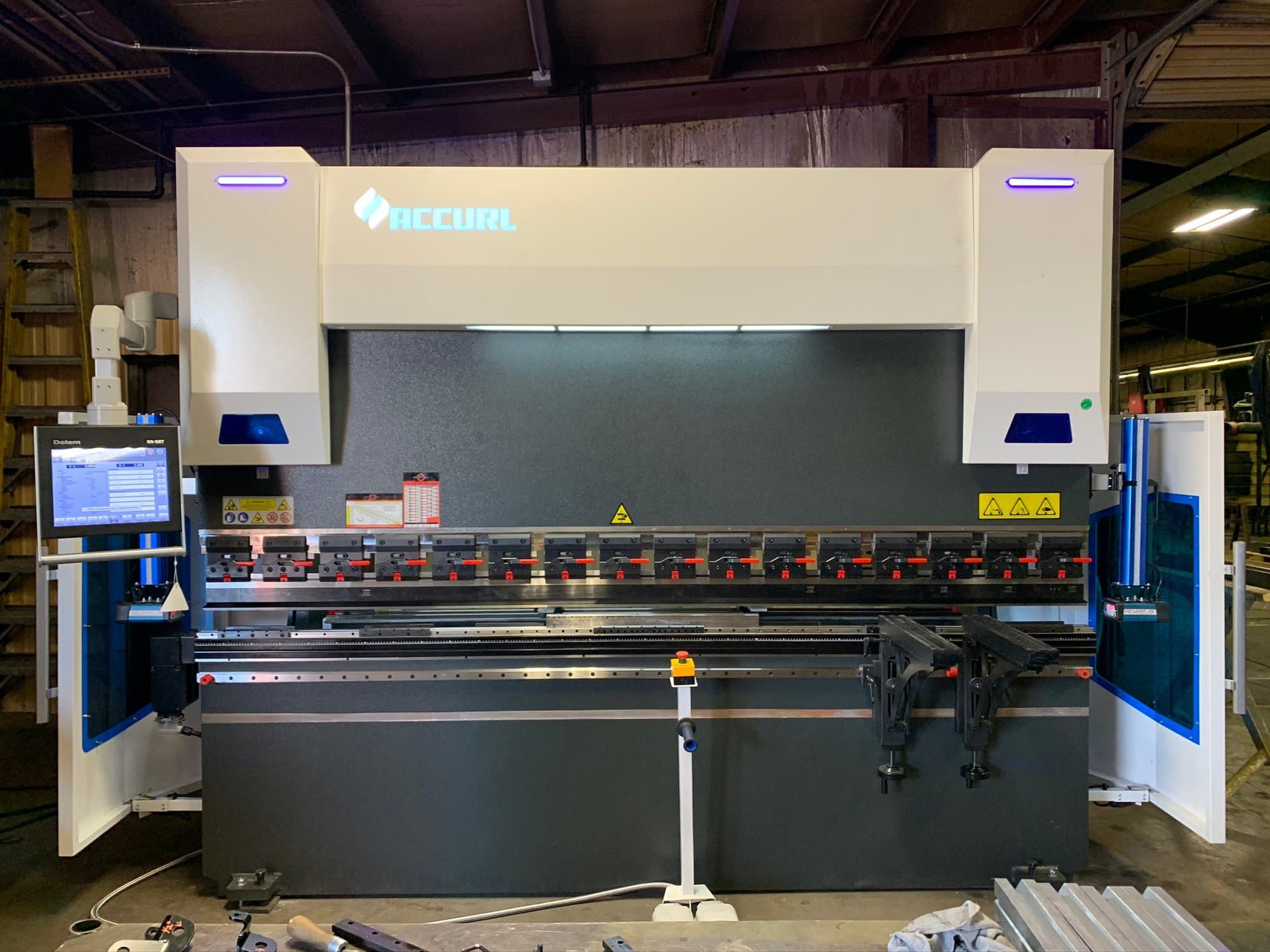

150 Ton X 10′ Accurl Genius Pro CNC Press Brake, 2020- Demo Machine, 5-Axis
$79,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Bending Force: 150 Ton
Bending Length: 128″
Distance Between Side Frames: 106″
Stroke: 7.87″
Daylight: 18.7″
Throat Depth: 15.7″
Table Width: 4.7″
Working Table Height: 35.6″
Working Speed
Fast Approach Speed: 425″/min
Working Speed: 24″/min
Return Speed: 378″/min
Backgauge
Max Speed X-axis: 828″/min
Max Travel X-axis: 31.4″/min
Finger Blocks: 2
Motor HP: 15
Oil Capacity: 68 Gallon
Voltage: 220 or 480V 3 Phase
Machine Dimensions – 165”L X 105”H X 70”W
Machine Weight: $21,000
Equipped With:

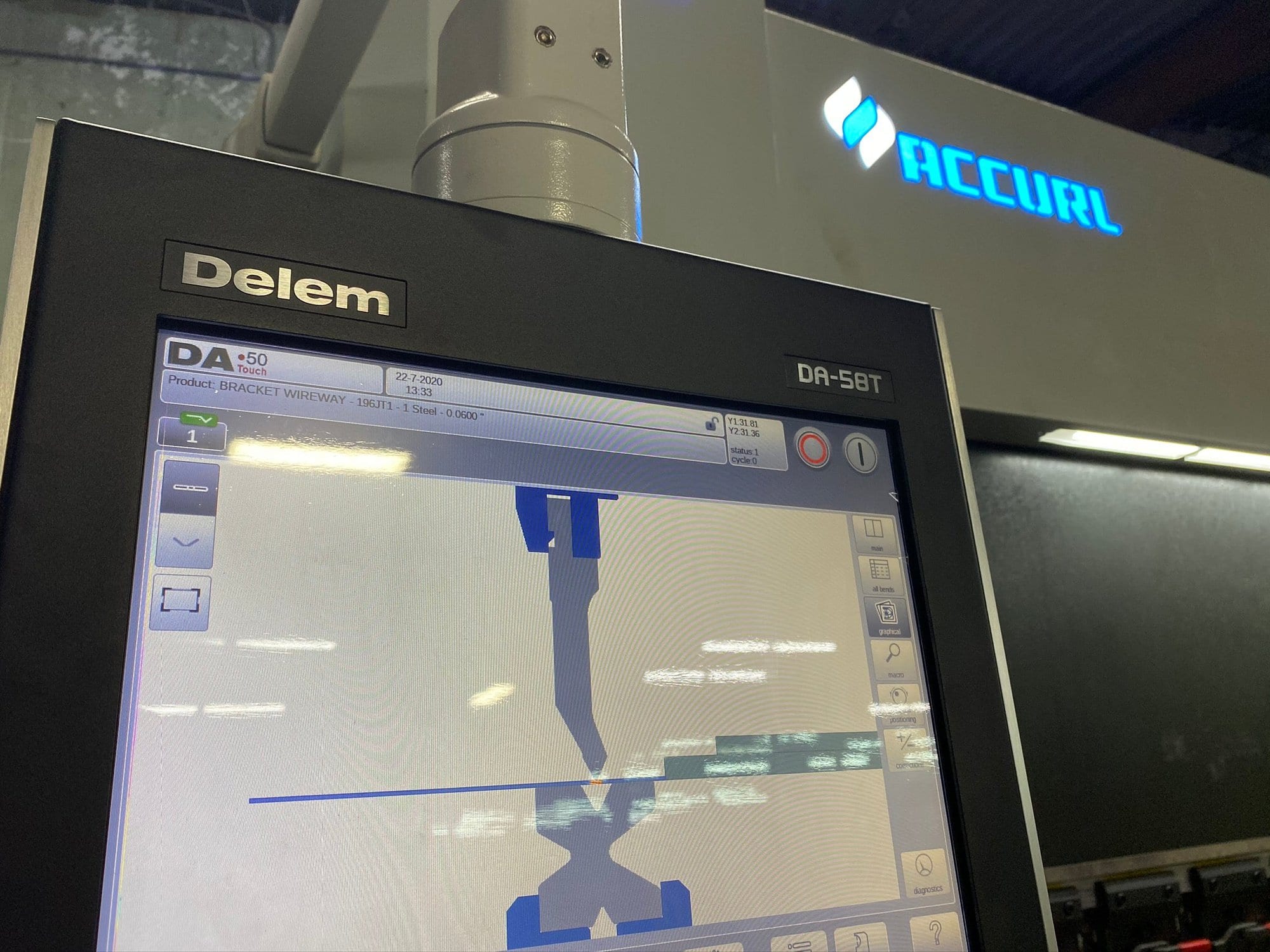

Delem DA58T CNC Control
Y1/Y2, X, R, Crowning
DSP Laser Safety Protection
Top & bottom Sectionalized tooling with quick clamp system
Rear Laser curtains
Hoerbiger Hydraulics, Siemens motor & Electrical, etc.
Demo Machine! Includes Installation/Training and 1 year Factory Warranty
