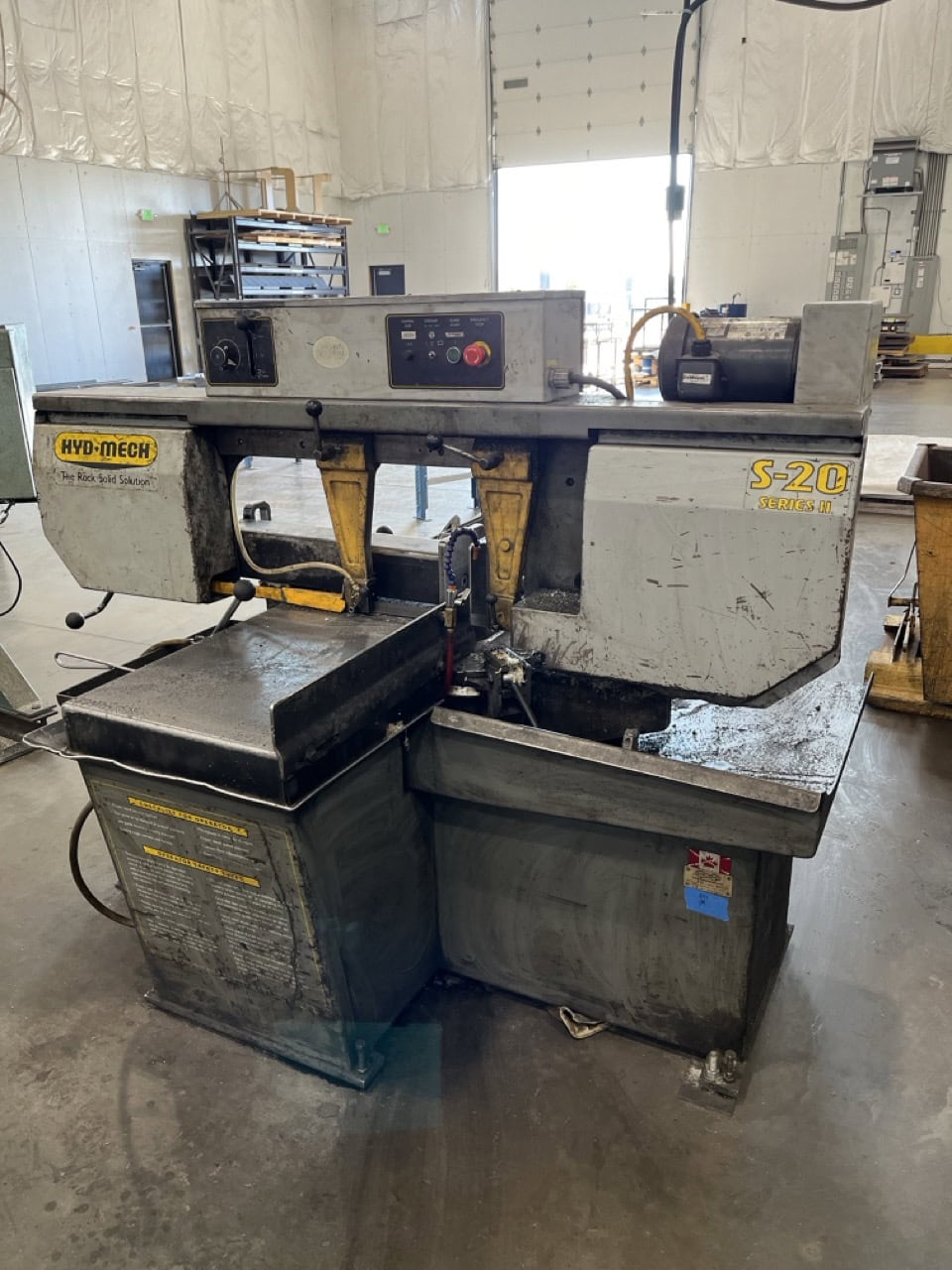

13″ x 18″ Hydmech S20 Horizontal Bandsaw, 2005
$9,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Specifications:
Capacity:
Rectangular:
@ 90°: 13″ x 18″
@ 45°: 13″ x 10 3/4″
@ 30°: 13″ x 7 3/4″
Round:
@ 90°: 13″
@ 45°: 12″
@ 30°: 8 1/2″
Blade Size: 14′ 10″ x 1″
Blade Speed: 45 – 330 SFM
Coolant Tank Capacity: 6 Gallons
Work Load: 5,000 lbs.
Motor: 3 HP / 480v / 3ph (208v, 240v, or 575v power sources will require a transformer)
Standard Features:
Easy swing, heavy duty cast iron saw head that can swing up to 60° in one direction
3HP true direct blade drive – no belts/pulleys
36″ material in-feed roller table and 19″ outfeed table
Heavy-duty, quick adjusting, sliding material vise jaw
Mechanical band tensioning with digital read out
Cast iron band wheels
Swing away operator control panel
Replaceable blade brush
Robust steel base
Easy to ready angle scale with an angle locking mechanism
Cast iron guide arms, idler side guide arm is adjustable and supported by linear rail
Gravity fed sawing head with infinite feed adjustment
Pre-set, replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Mechanical Specifications:
Dimensions: 92″ x 75″ x 52″ H
Weight: approx. 2,200 lbs.
