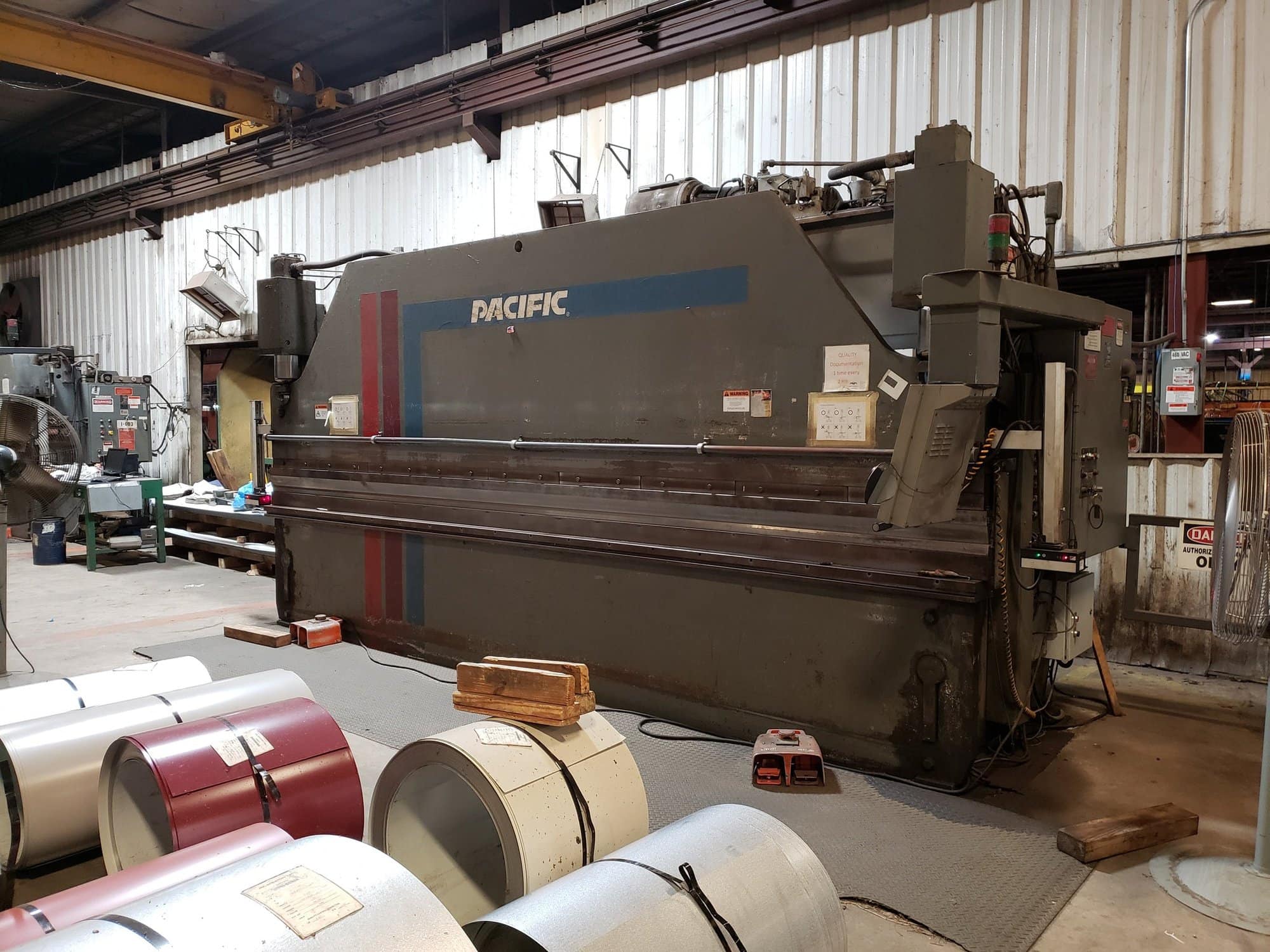

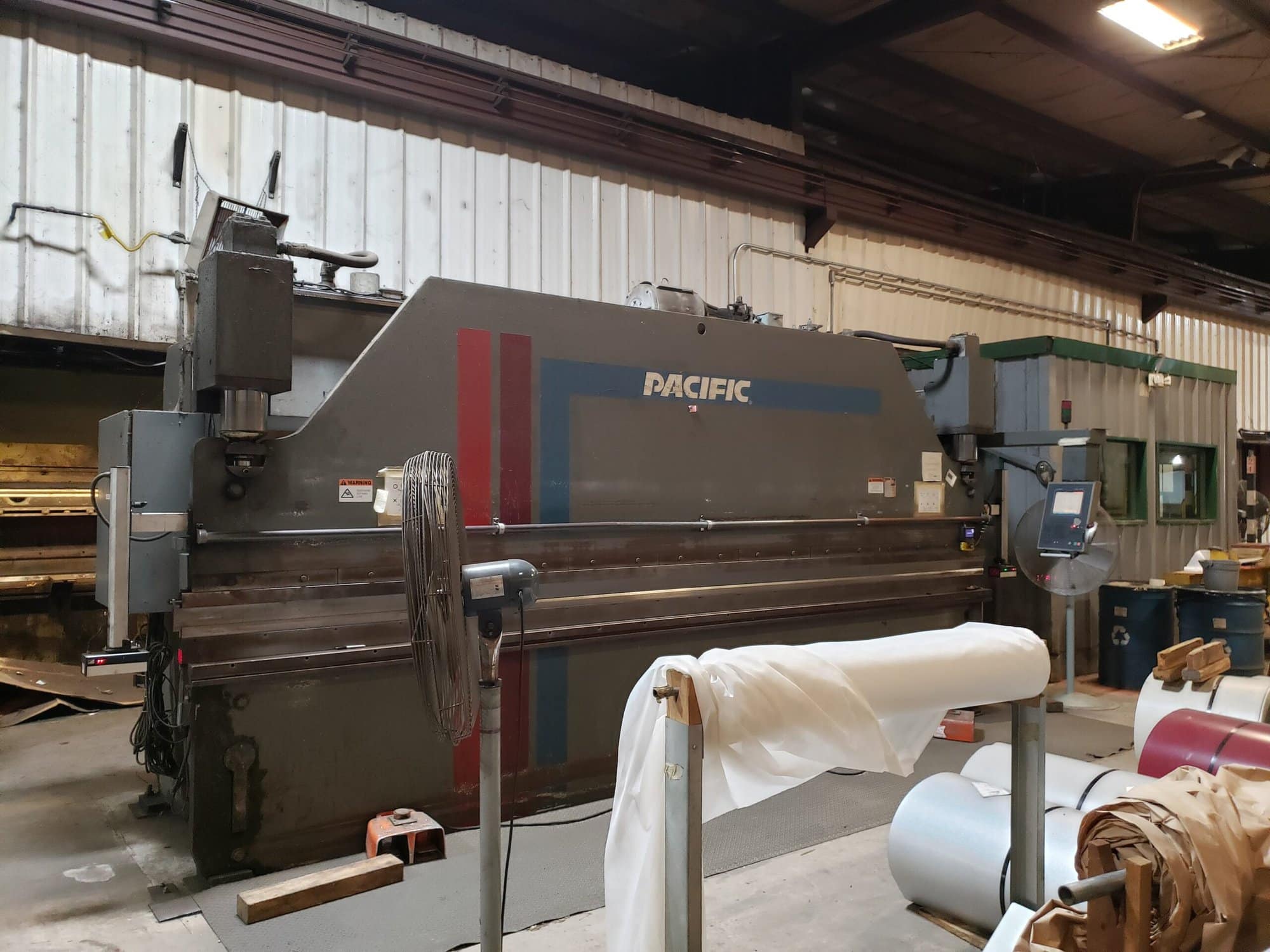

135 Ton x 18′ Pacific FF135-18IIS CNC Press Brake, 1992
$27,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Capacity: 12 GA. MS. PL. (135 Ton)
Length: 18′
Max. Ram Die Wt.: .55 Tons
PSI: 3000
ELECTRICAL:
Supply – 460 Volts
Phase – 3
Hz – 60
Full Load – 40 Amps
Control – 115V
Overall Length of Bed: 12′
Distance between Housings: 10’5″
Stroke of Ram: 10″
Open Height: 15″
Closed Height: 5″
Depth of Throat: 7″

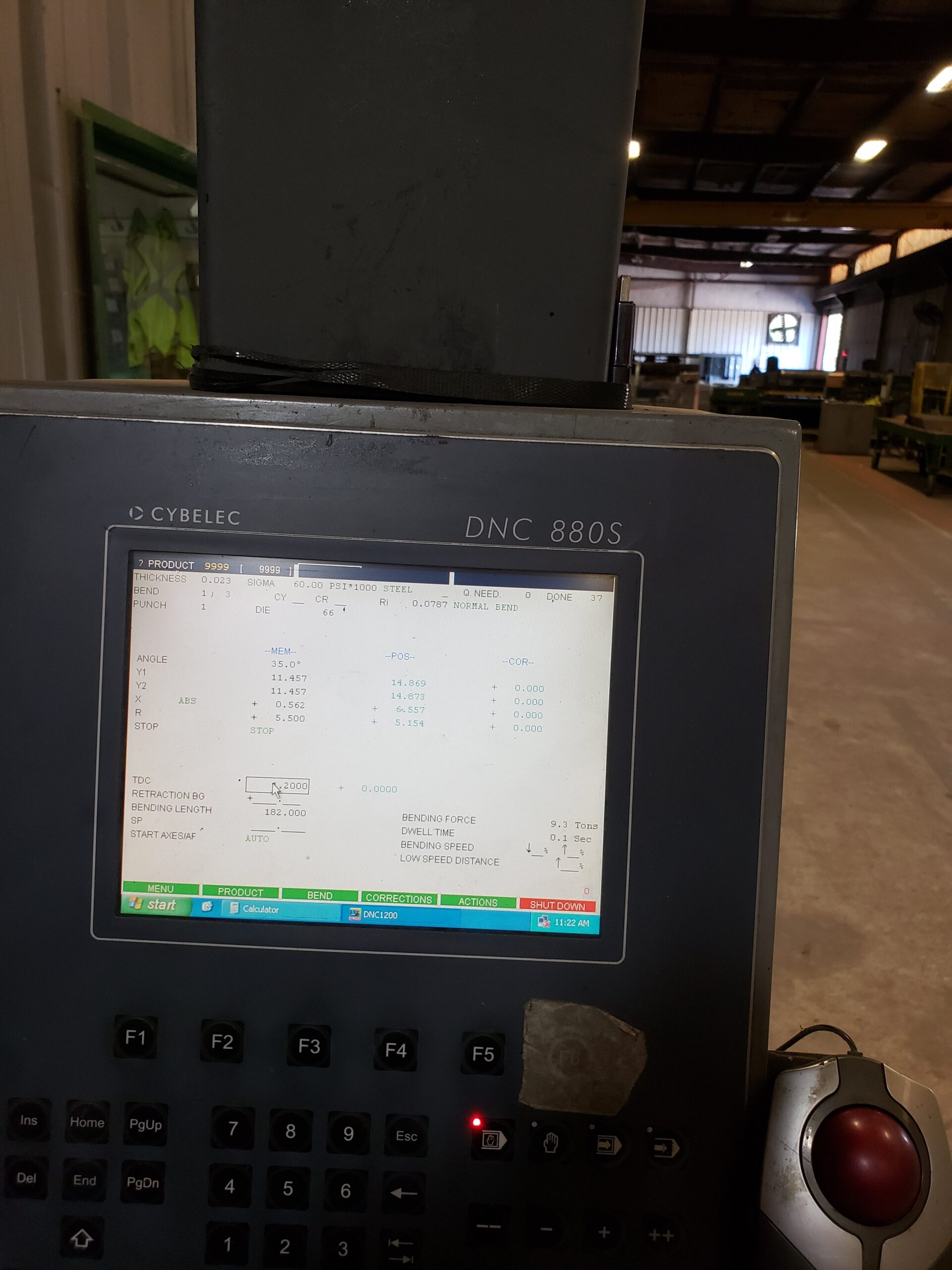

Control: Cybelec DNC 880S
Pit Required
All specifications are assumed to be correct, but must be confirmed by purchasing entity
