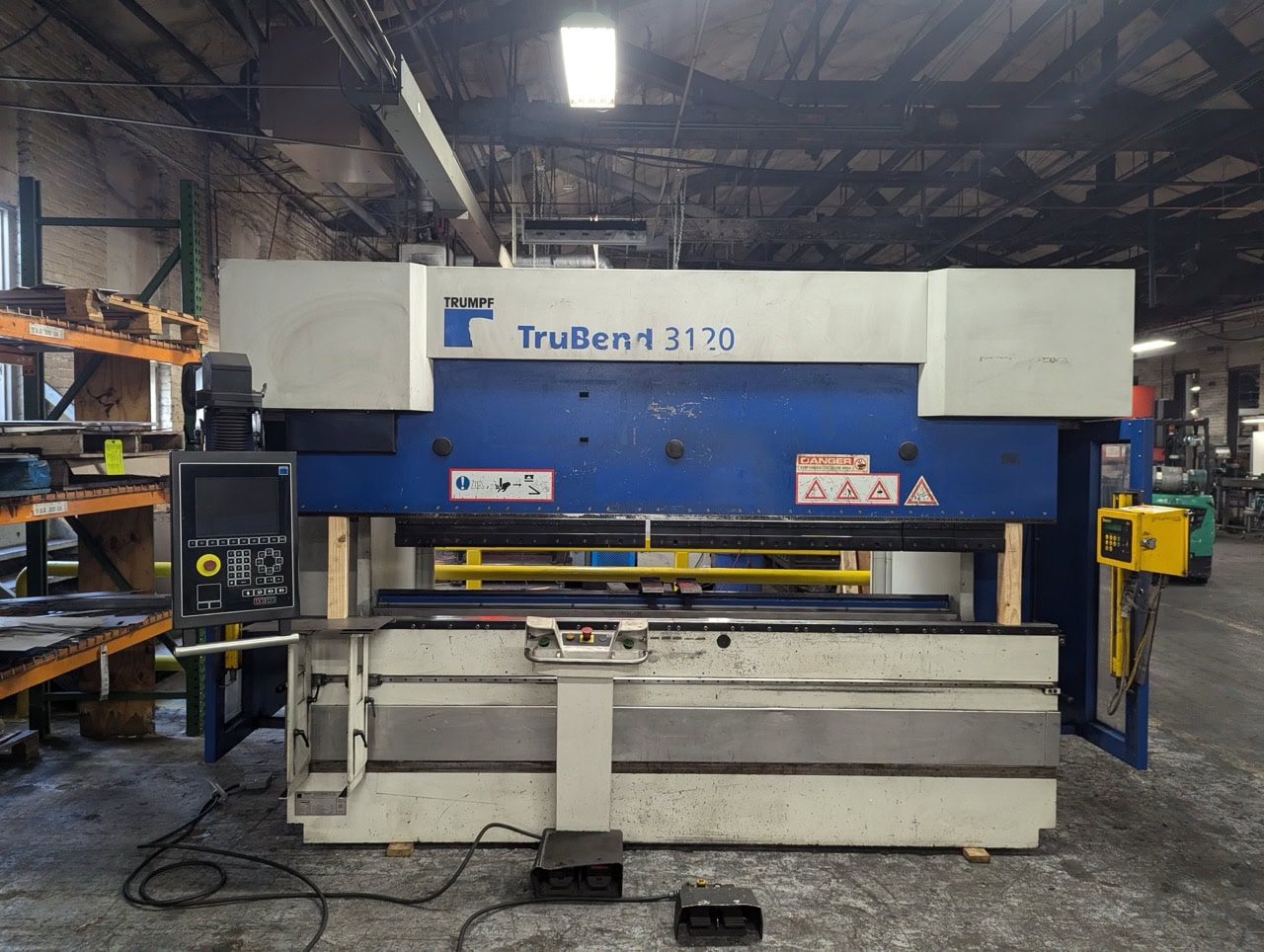

132 ton x 10' Trumpf Trubend 3120 Press Brake, 2008

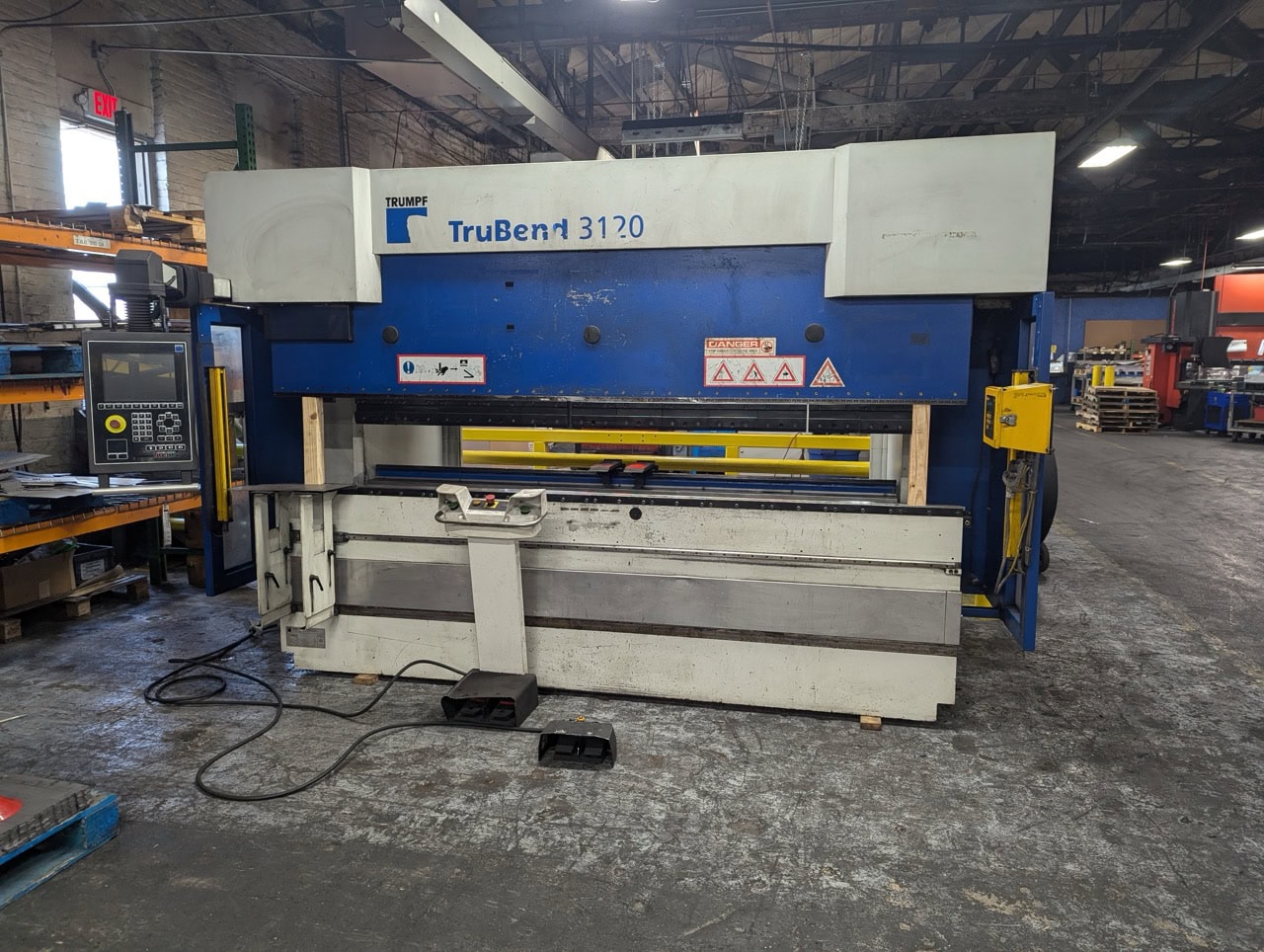

132 ton x 10' Trumpf Trubend 3120 Press Brake, 2008 - Image 2

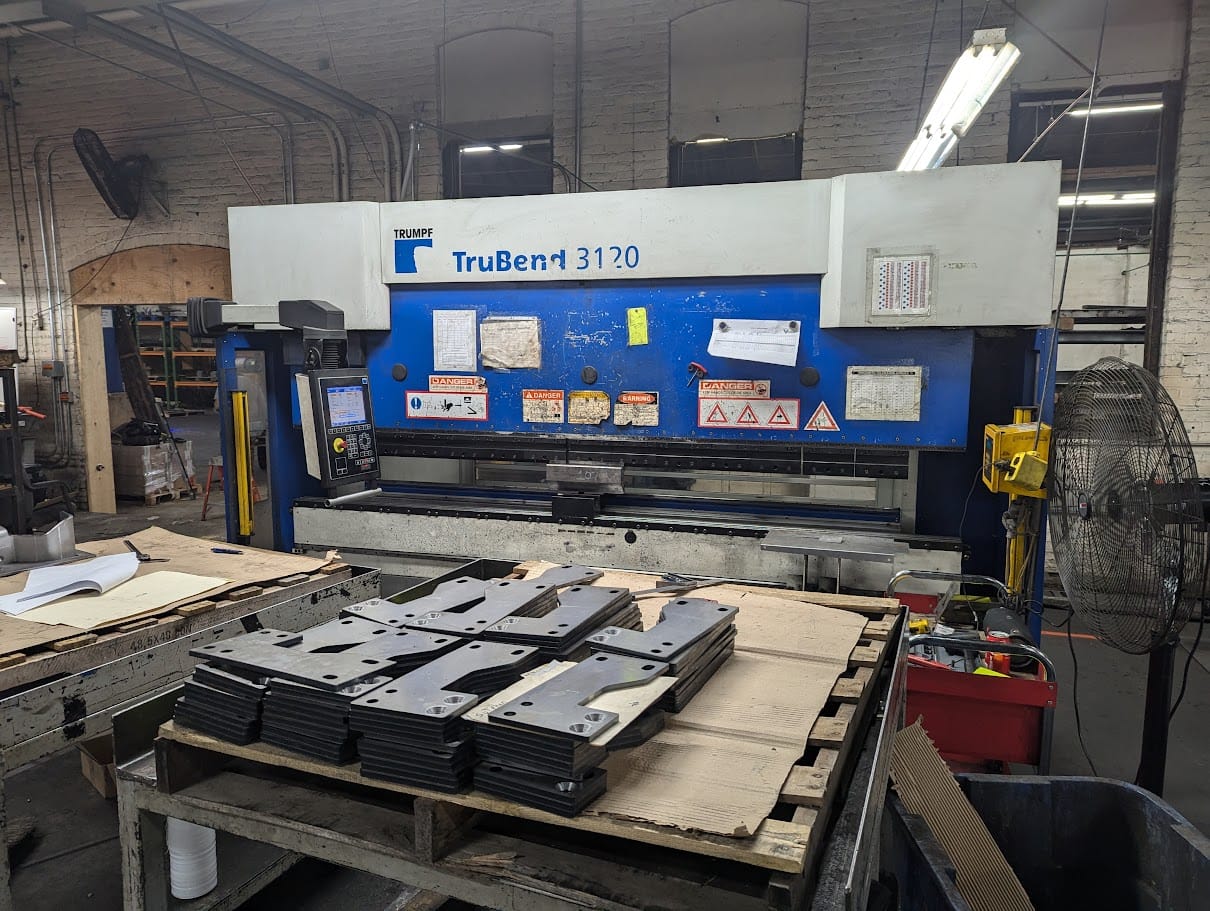

132 ton x 10' Trumpf Trubend 3120 Press Brake, 2008 - Image 3

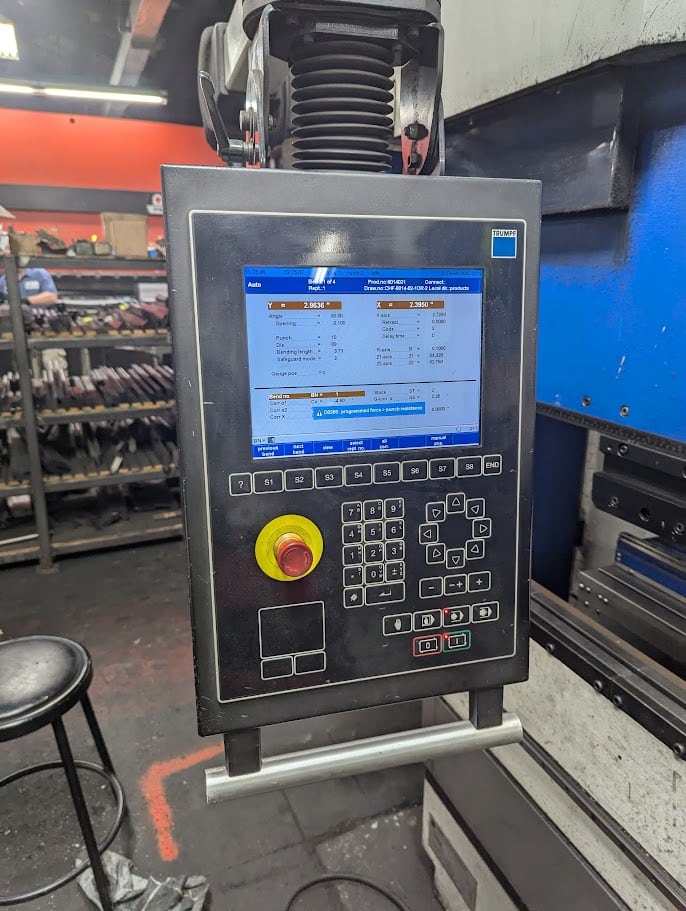

132 ton x 10' Trumpf Trubend 3120 Press Brake, 2008 - Image 4
DJL
21783098417

132 ton x 10′ Trumpf Trubend 3120 Press Brake, 2008

$39,900.00

132 ton x 10' Trumpf Trubend 3120 Press Brake, 2008
132 ton x 10' Trumpf Trubend 3120 Press Brake, 2008 - Image 2
132 ton x 10' Trumpf Trubend 3120 Press Brake, 2008 - Image 3
132 ton x 10' Trumpf Trubend 3120 Press Brake, 2008 - Image 4

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Hydraulic Press Brakes
Make: Trumpf
Model: Trubend
Year: 2008
Capacity: 132 Ton x 10‘
Machine Location: Upon Request
Stock #: 098417

Year: 2008
Approx. Shipping Weight: 18,364 Lbs.
Approx. Shipping Dimensions: 141.7″ x 68.9″ x 91.7″ H
Bending Length: 122.4″
Tonnage: 120
Usable Installation Height: 18.5″
Distance Between Columns: 105.9″
Rapid Speed: 7.87″/sec
Return Traverse Speed: 7.1″/sec
Speeds Working: .039″ to .39″ / sec
Operating Height: 43.1″
Stroke: 13.7″

Y1/Y2/X/R Axis

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
