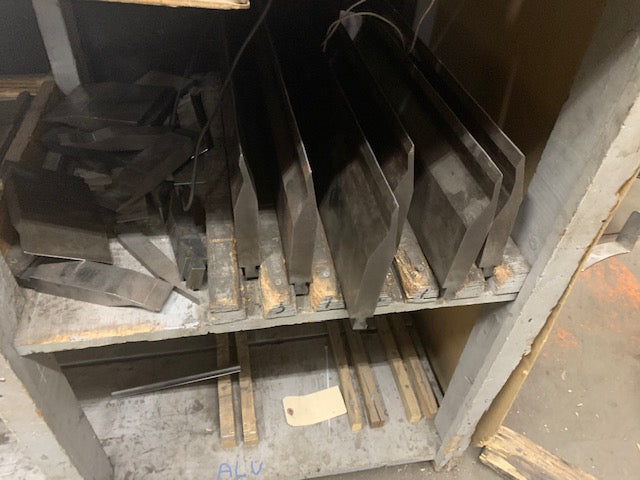

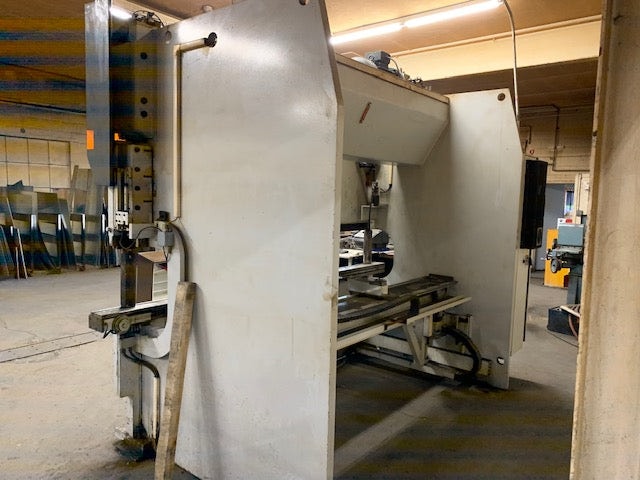

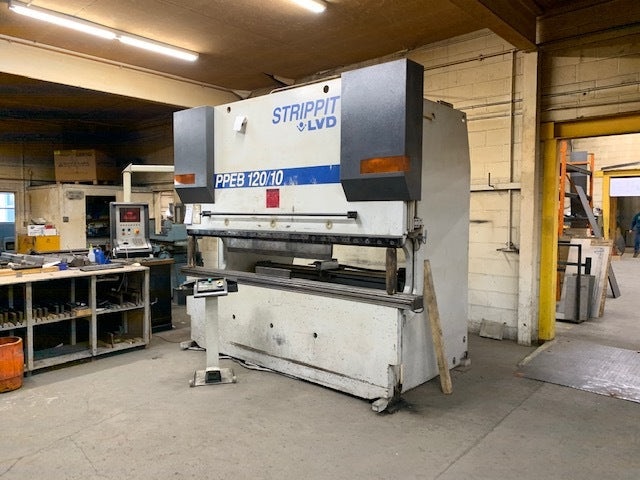

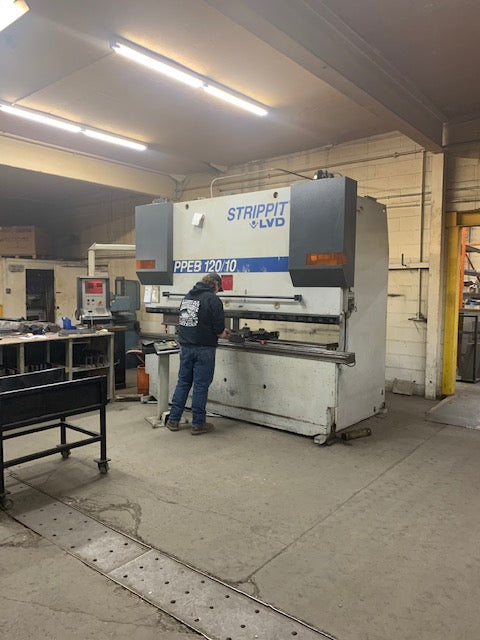

120 Ton x 10′ Strippit LVD PPEB 120/10 CNC Press Brake, 2001 – Tooling Included, Pre-Removal Price
$20,667.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
5 Axis Back Gauge
Z2 Axis Motor needs replacement, works manually
Max. Tonnage Capacity: 120 Ton
Overall Length of Bed & RAM: 120″
Distance Between Housings: 102″
Throat Depth: 15.9″
Stroke Length: 15.7″
Open Height: 23.6″
Approach Speed: 307 IPM
Bending Speed: 28 IPM
Return Speed: 271 IPM
Motor: 24 HP
Approx. Weight: 21,000 lbs
EQUIPPED WITH:
Cadman 8-Axis CNC Control
Y-1 & Y-2 Programmable RAM Axis
V-Axis Adjustable Crowning Bed
X1/R/Z1/Z2/X-Prime 5-Axis Back Gauge
