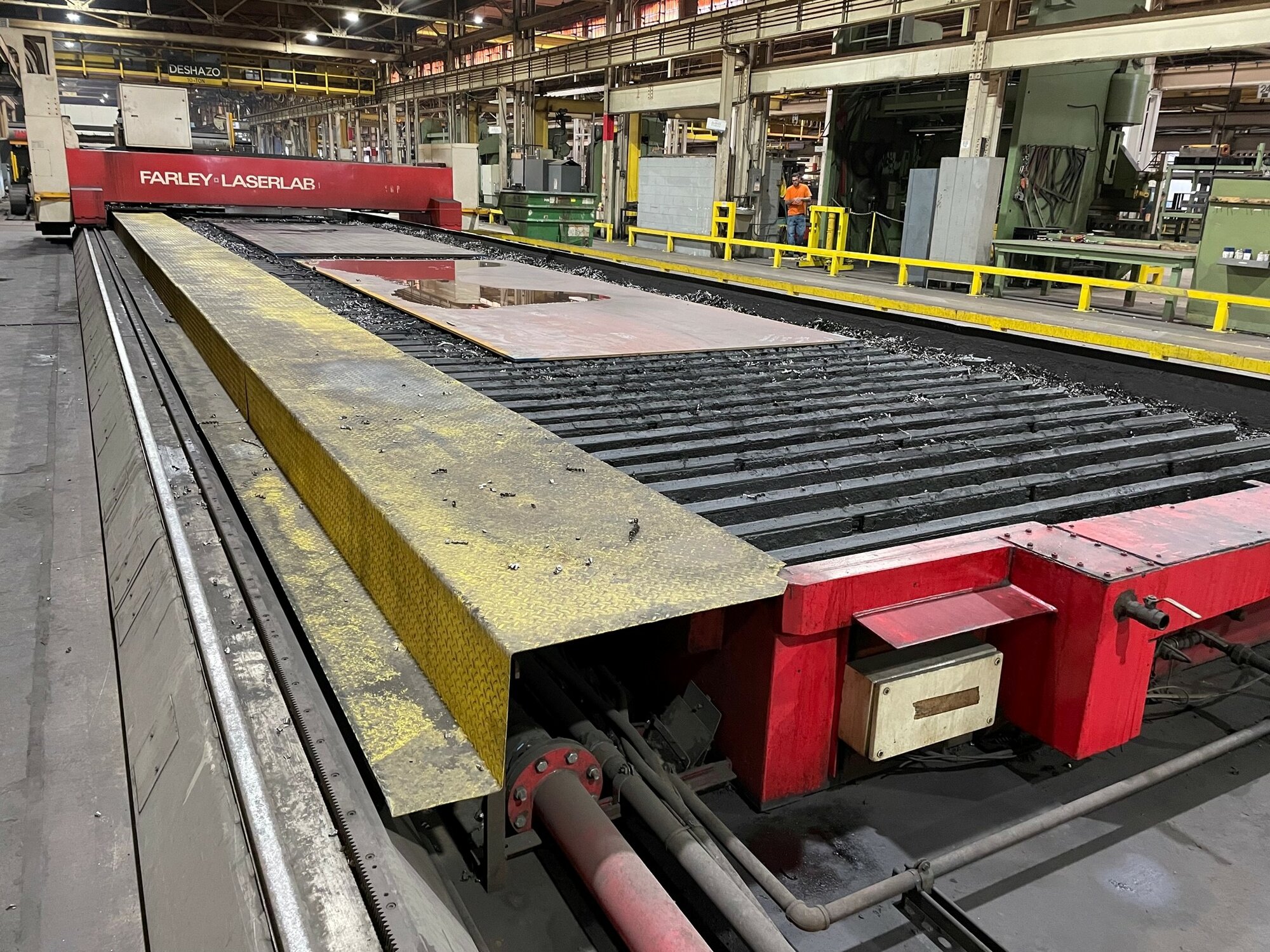

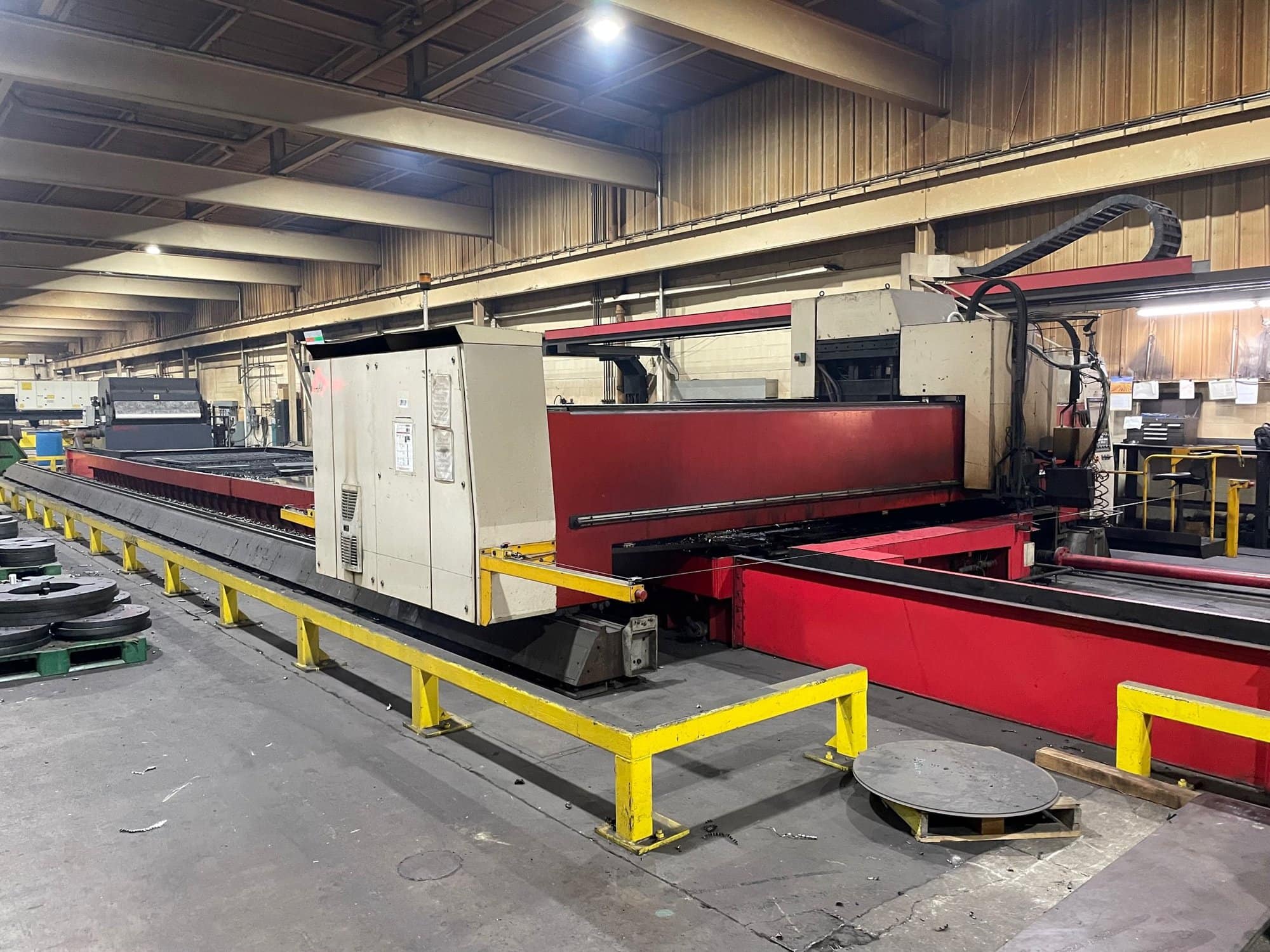

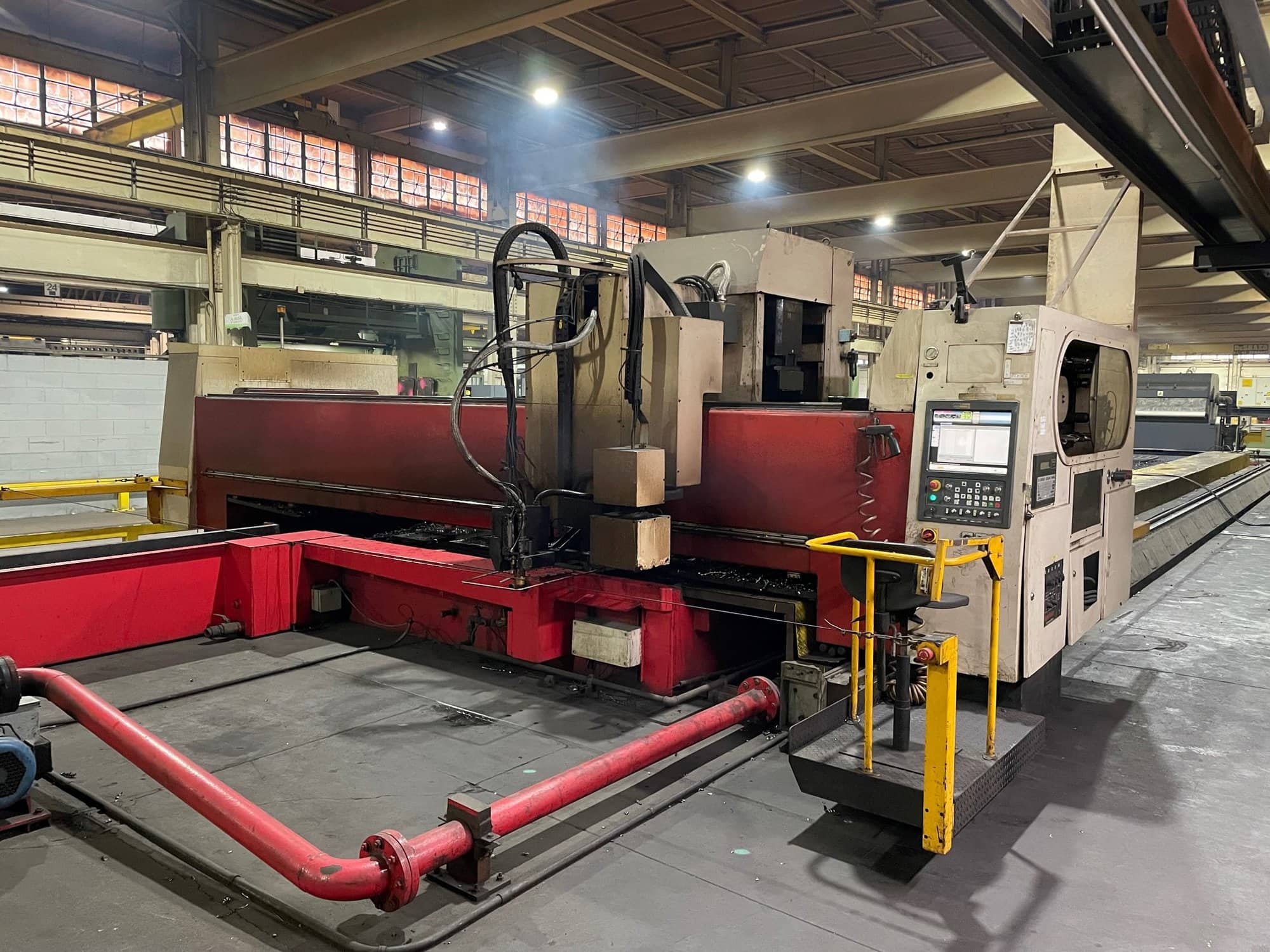

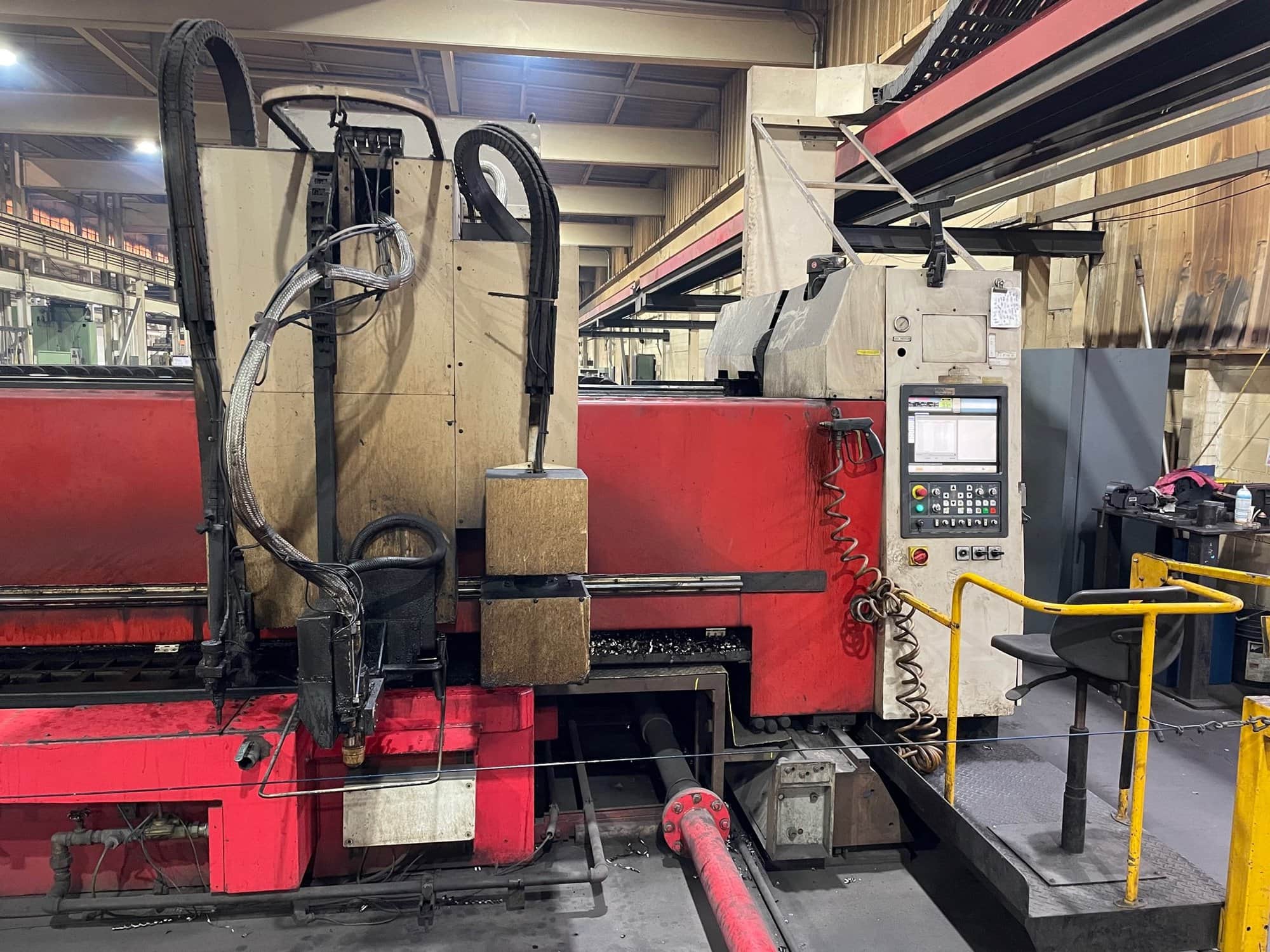

12′ x 60′ Farley Fabricator XRP CNC Plate Drill/Plasma, 2009 – Hypertherm HPR400XD, Available Immediately, Through Spindle Coolant
$64,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Spindle
HP: 36
Max RPM: 6000
Tape: BT40

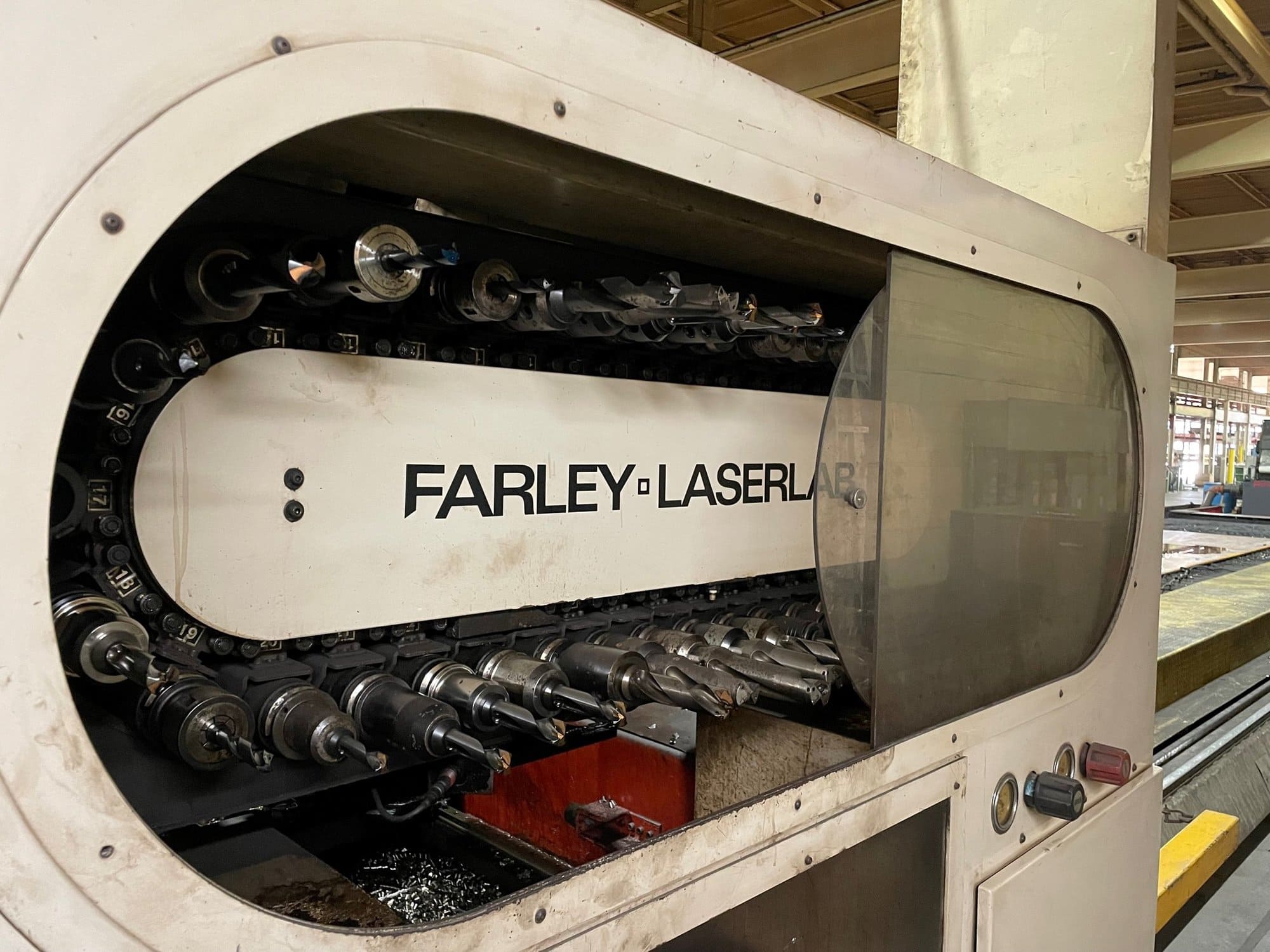

40 ATC

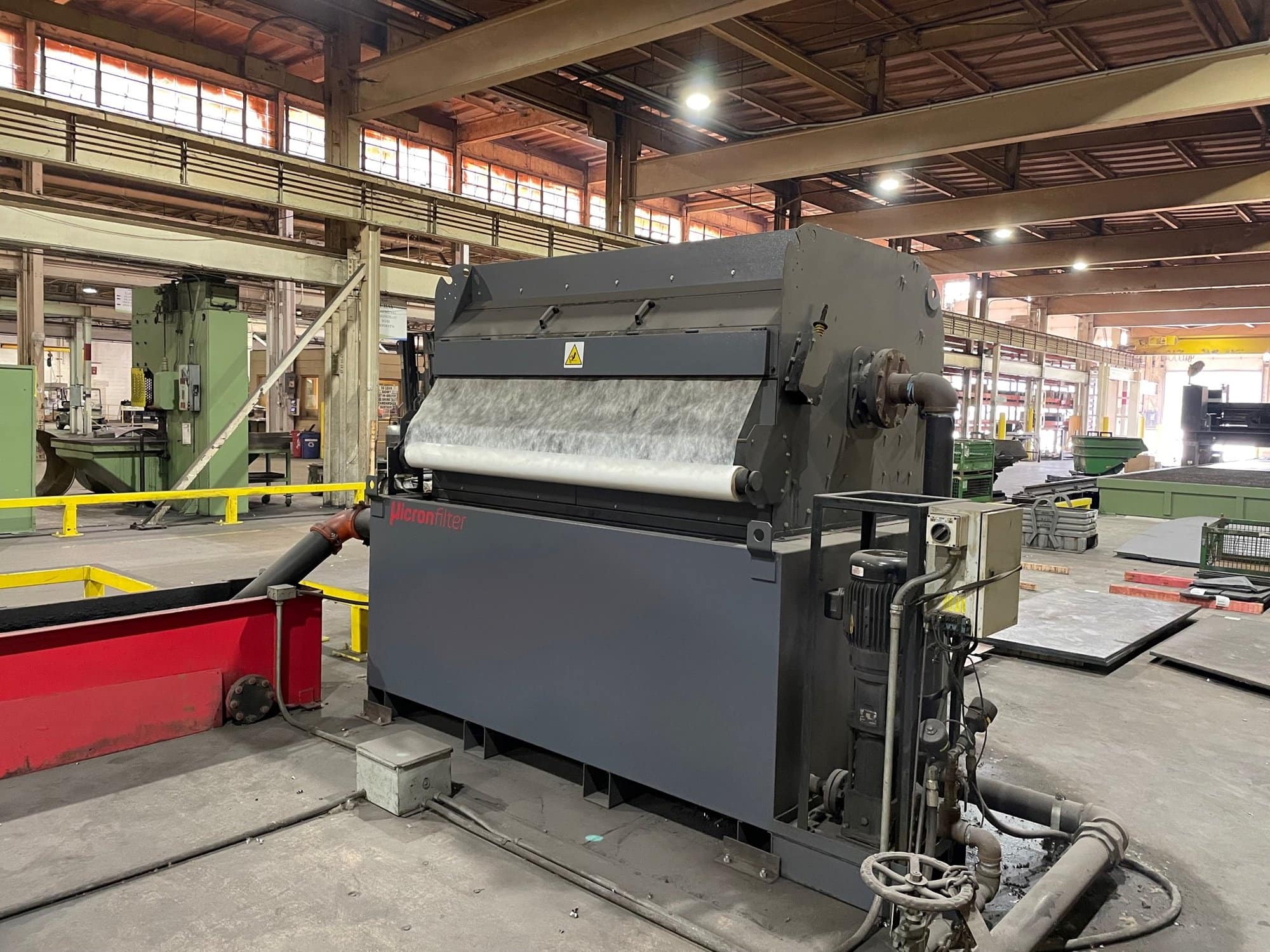

125 PSI TSC
Oxy-Fuel Torch
Mild Steel Cutting Capacity:
Dross Free: 1-1/2″
Production Pierce: 2″
Max Cutting Capacity: 3.2″
Drilling 1/16” (2mm) minimum 2.5” 63.5 mm maximum
Tapping M10 minimum M42 maximum
Boring 8” 200 mm dia maximum
Countersinking 5” 125 mm dia maximum
Counter-boring 6” 140 mm dia maximum
Maximum X (rail) Axis Traverse Speed up to 2,000 IPM (40m/min)
Maximum Y (beam) Axis Traverse Speed up to 2,000 IPM (40m/min).
Maximum Z (vertical) Axis Traverse Speed up to 1000 ipm
Equipped with:

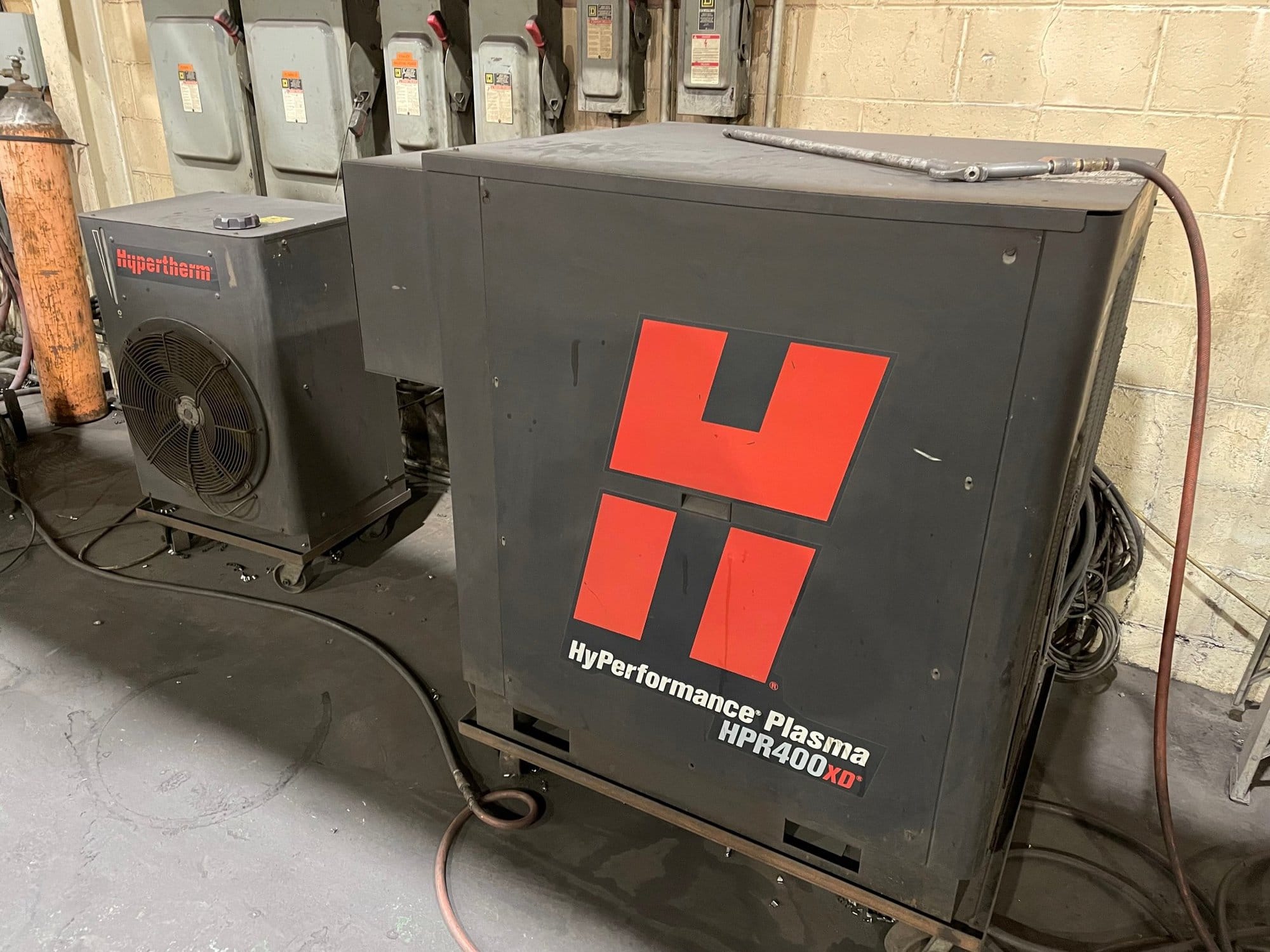

Hypertherm HPR400XD

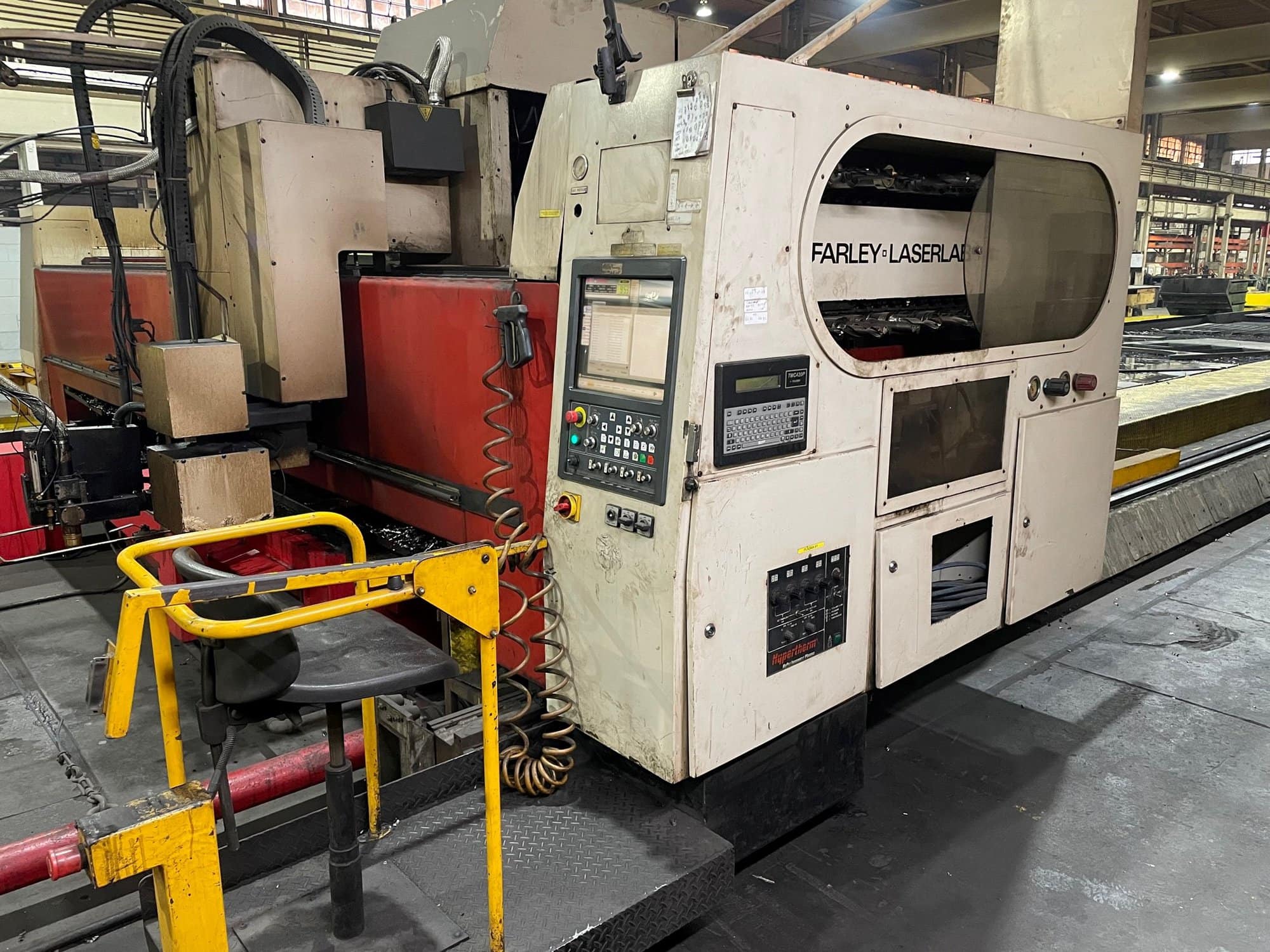

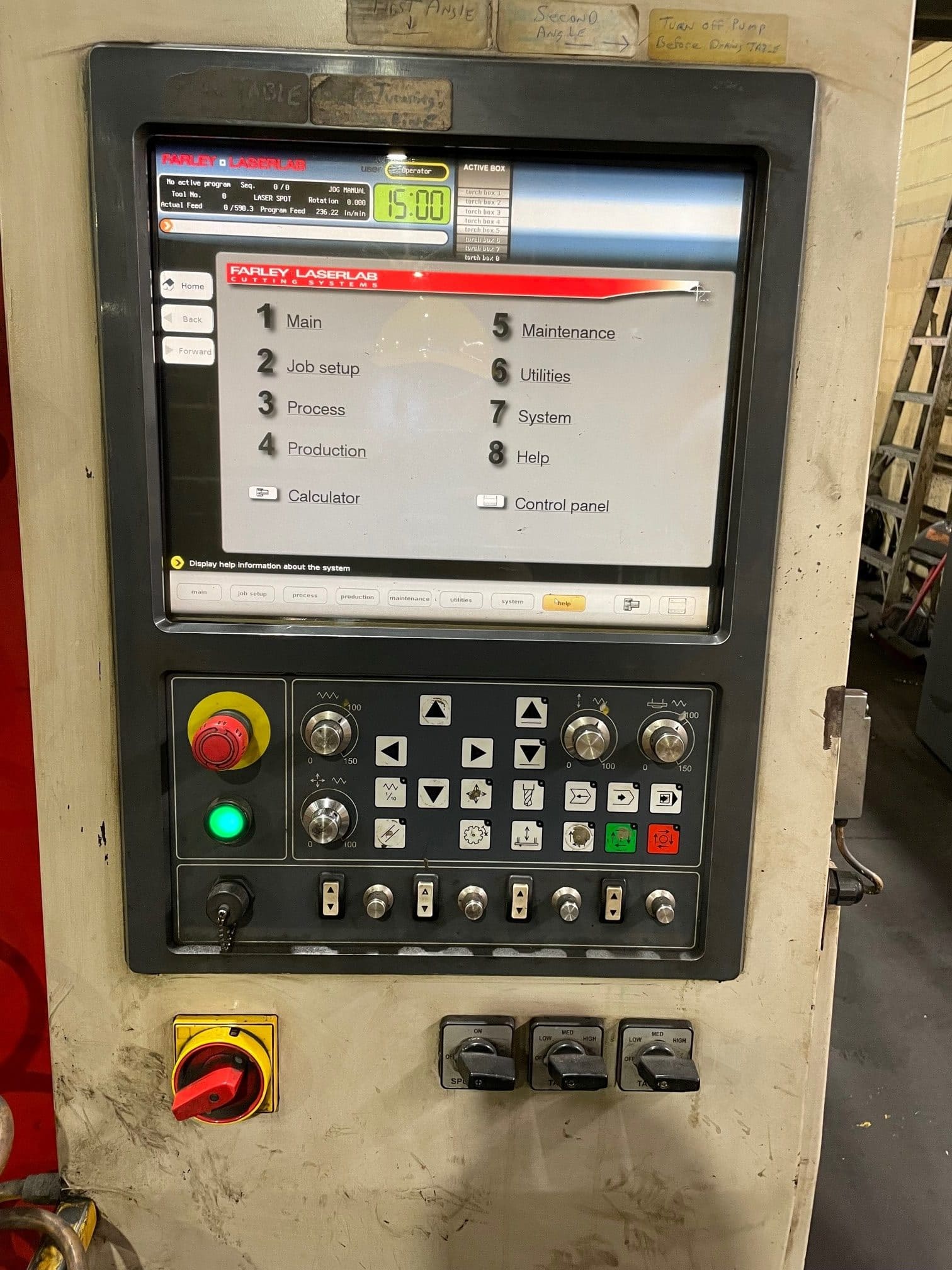

Siemens Control
