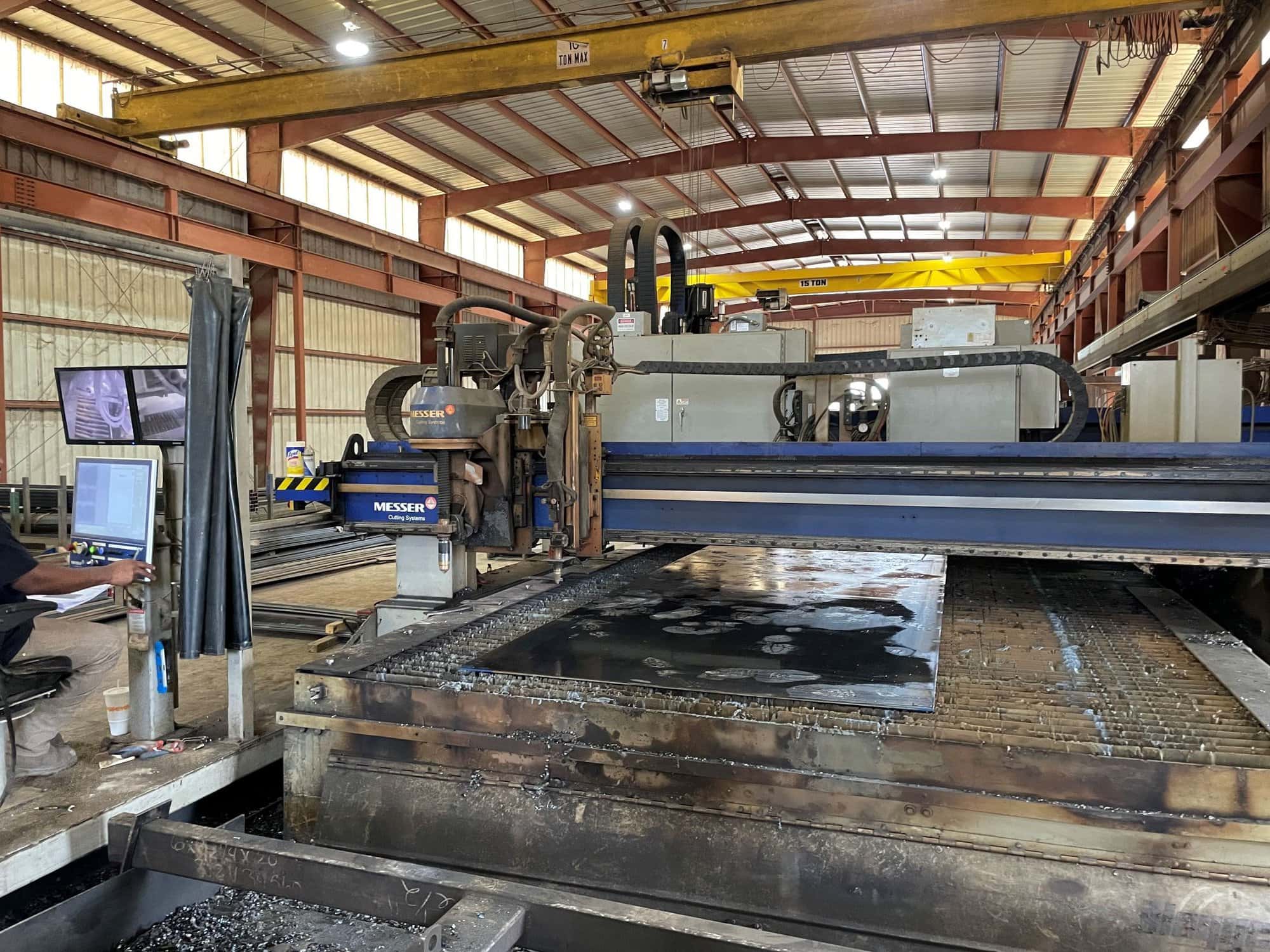

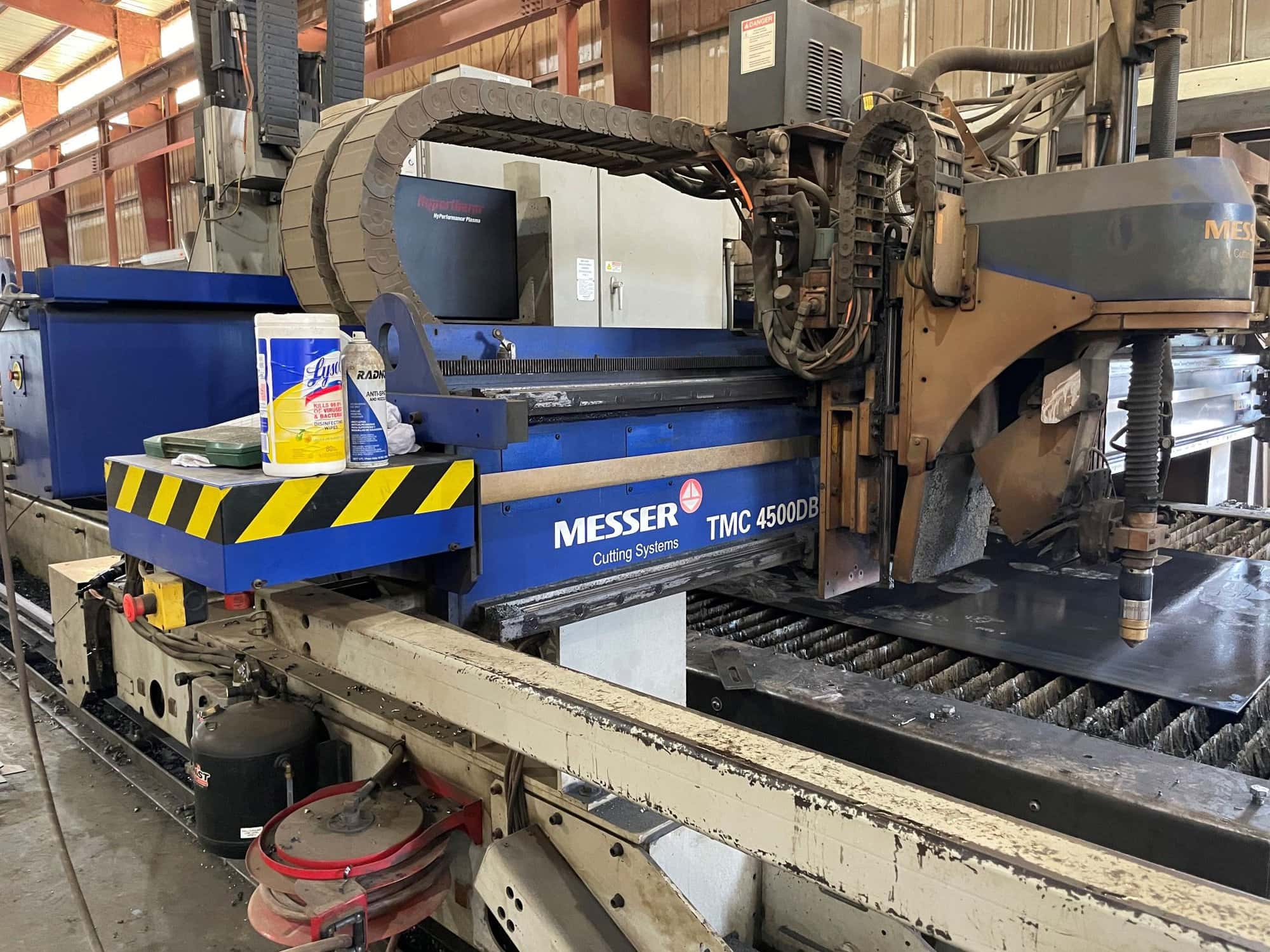

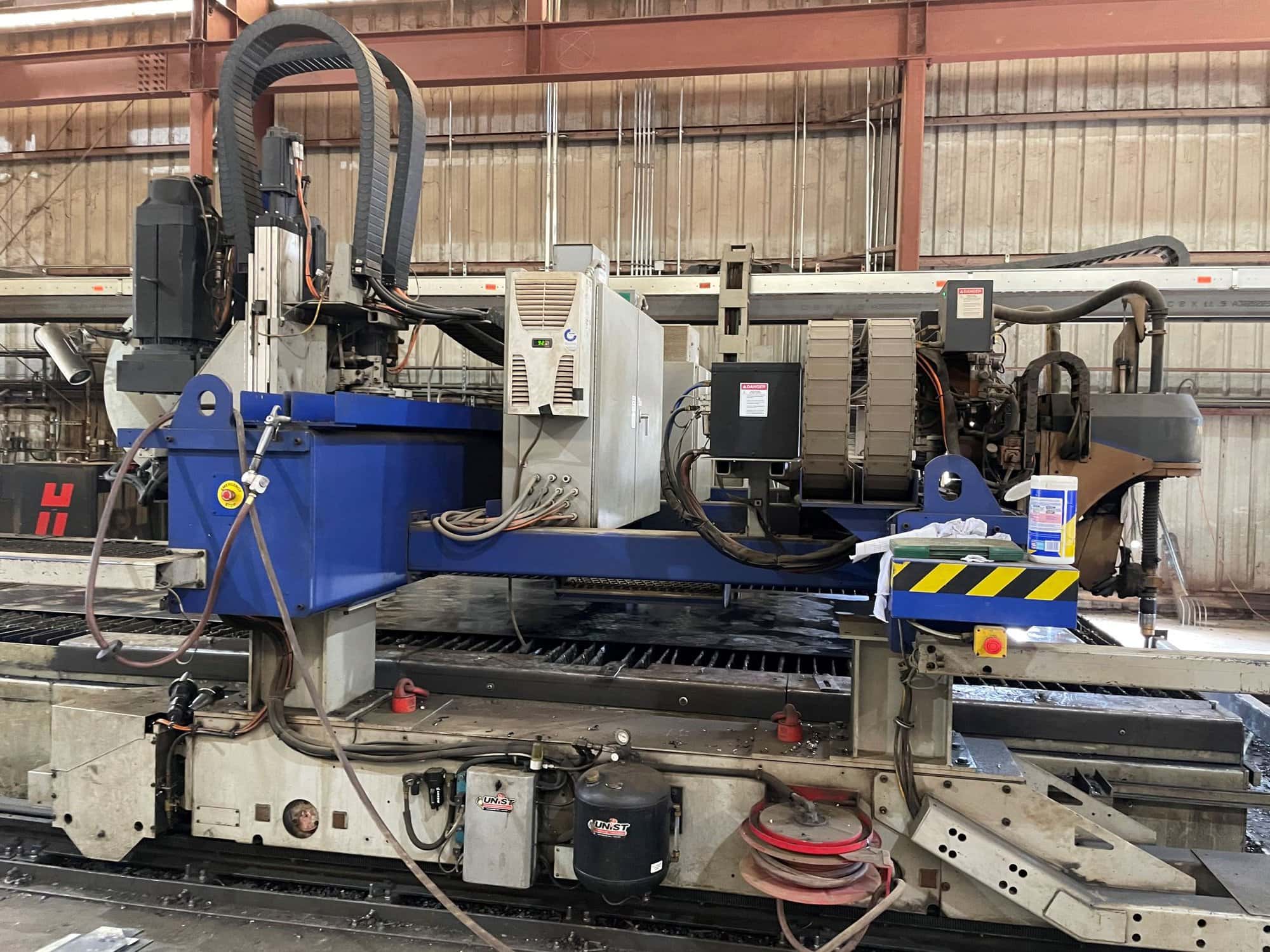

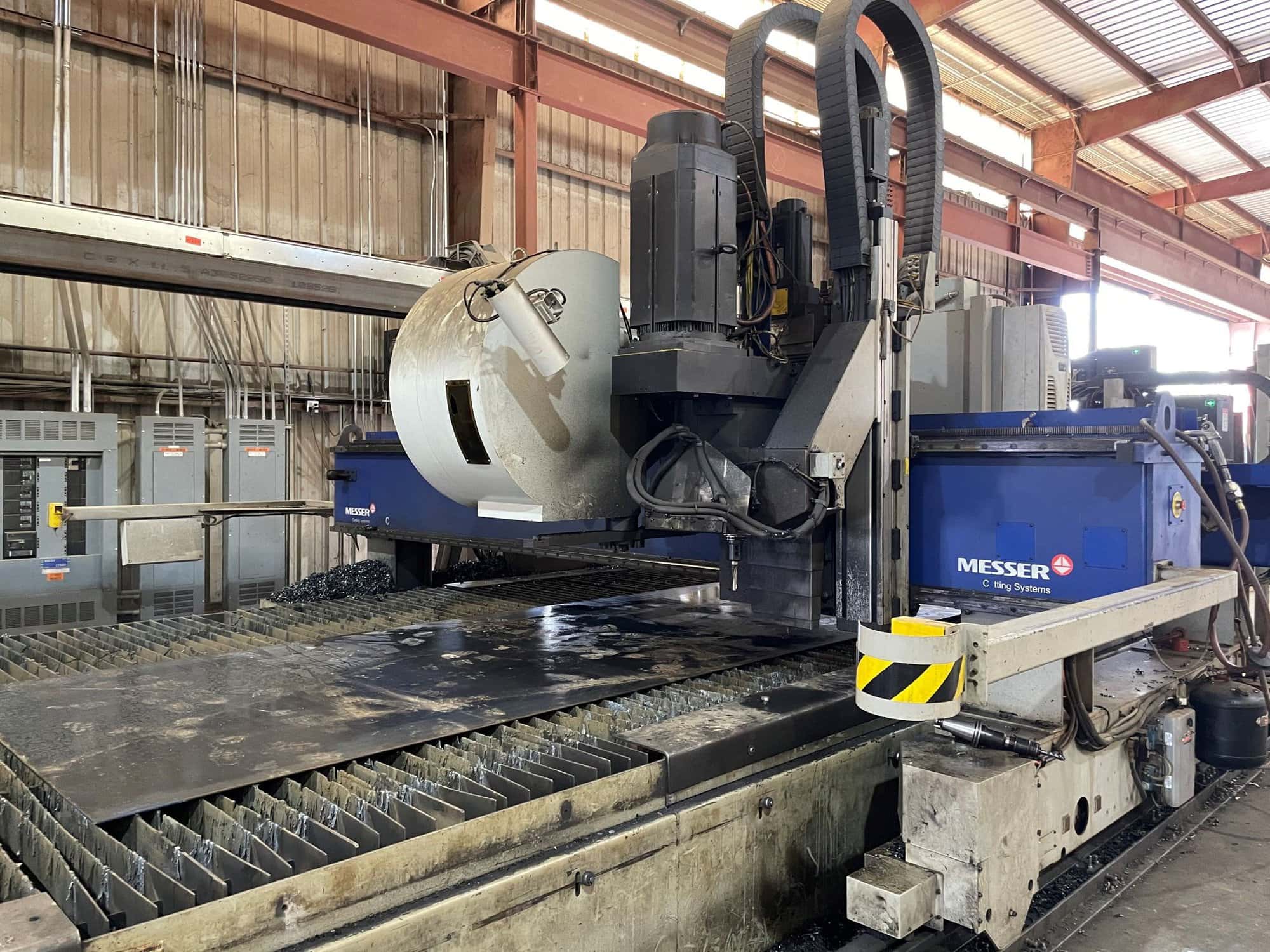

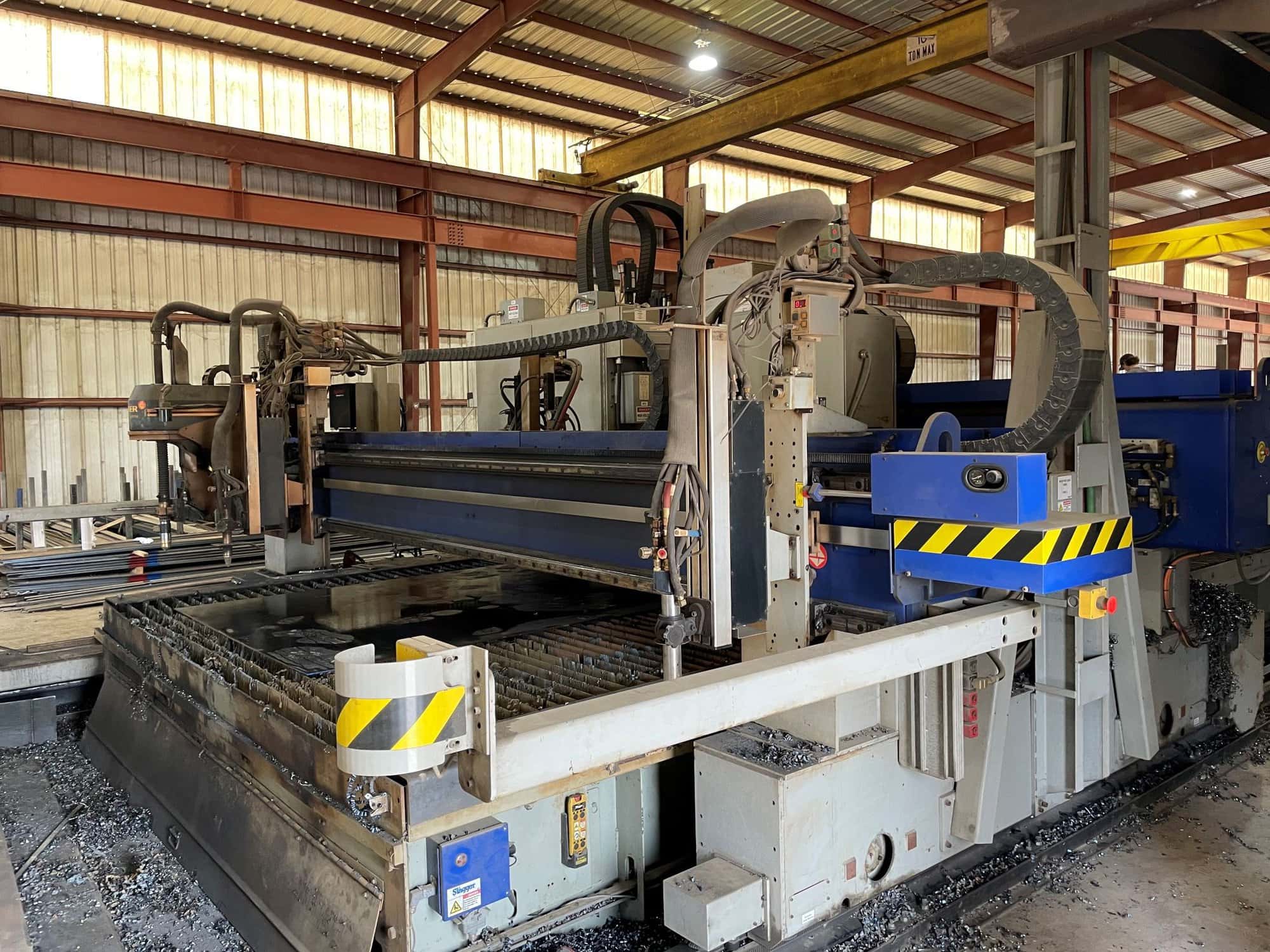

12′ x 48′ Messer TMC4500DB CNC Plasma, 2017 – Hypertherm HPR400
$138,993.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels:
X Axis: 48′
Y Axis: 12′
Maximum Cutting Capacity:
8″
Power supply: Hypertherm HPR400XD
Machine Speeds:
Rapid traverse Speed – 1000IPM
Max Contouring Speed – 52IPM
Machine Positioning:
Repeatability: .010
Accuracy W/o Comp +- .015 Over 72″x72″ area
Accuracy with Comp +- .015 Over entire cutting area
Control:
Messer Global Control
Windows 7 Professional (32-bit)
24″ LED color touch screen
Intel®, 1.9 GHz, 2 cores
2GB DDR3 – RAM
2.5″, 320 GB SATA hard drive
Four (4) USB ports
UPS battery backup
Fiber-optic I/O bus communication system
8-position joystick
Hand wheel/Feedrate override input device
10/100/1000 MBaud Ethernet port
Equipped with:
2 Oxyfuel Torches
Hypertherm HPR400xd
Dust Collection
Messer Global Control
