12″ x 12” Omax Protomax Waterjet, 2019 – 30,000 PSI
$21,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Cutting Area: 12″ x 12″
Max Material Thickness: 1.00″
Linear Positional Accuracy: ±0.005″
Repeatability: ±0.003″
Traverse Speed:100 inches per minute (IPM)
Pump Type: 5 HP (3.7 kW), Direct Drive
Cutting Pressure: 30,000 psi
High Pressure Water Flow Rate: 0.2 mm (0.95 lpm)
Orifice Internal Diameter: 0.008”
Mixing Tube: 2.25″long; 0.030″ internal diameter
Electrical: 240VAC / 60 Hz Receptacle, 10′ cord
Environment: 50 to 90 °F (10-32 °C) ambient temperature with 95% or less humidity
Minimum Input Water Pressure: 45-85 PSI
Minimum Flow Rate: 0.75 GPM
Temperature Required: 45-80 °F
Flow rate: 0.25 lbs. per minute
Recommended size: 80 mesh
Hopper Capacity: 14 lbs.

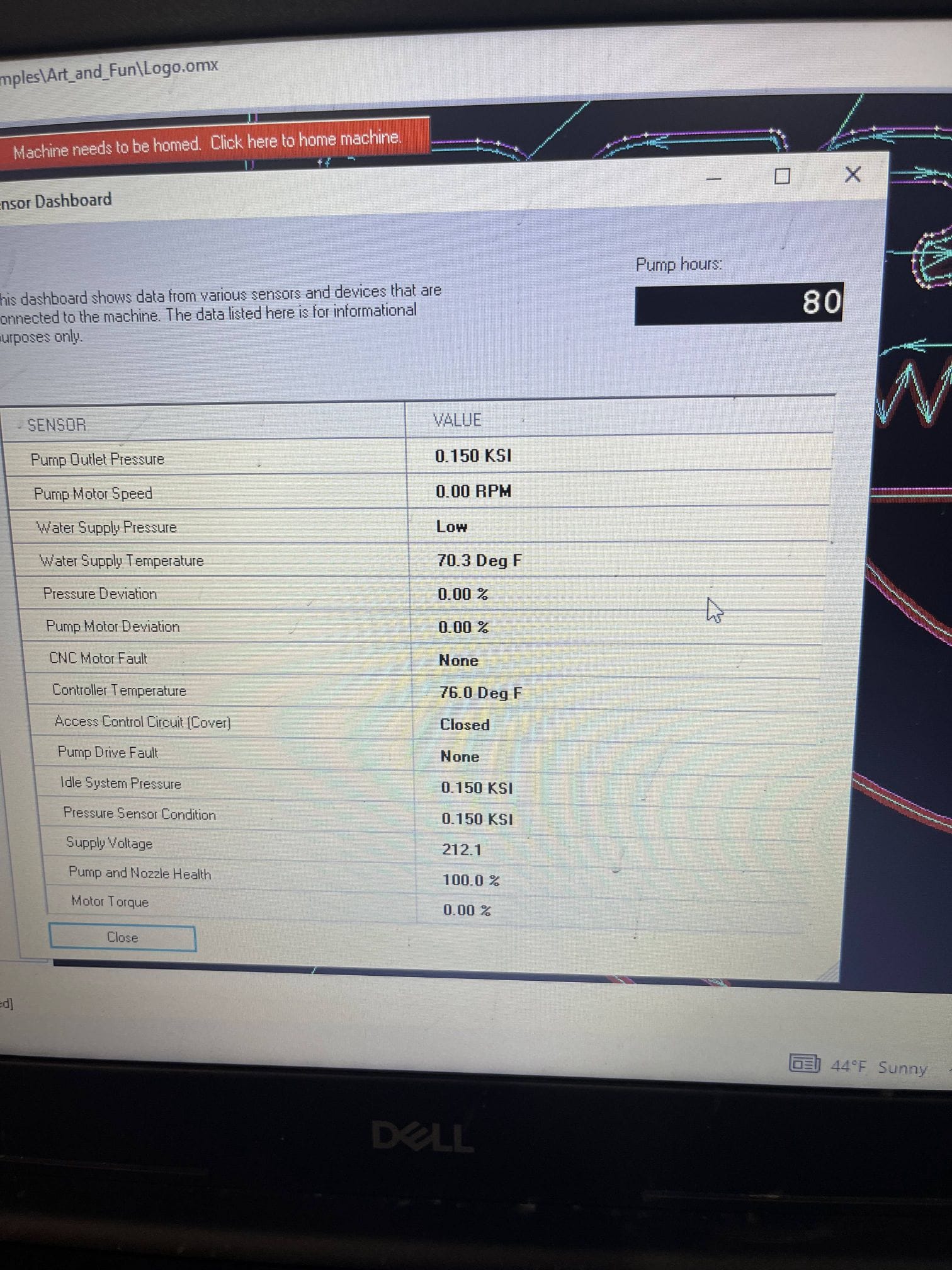

Pump Hours: 80
Equipped With:
Drain Water Filter Tank (With a Bag Filter and a Pump
