12.2″ X 15.7″ BEHRINGER HBP310/403GA AUTOMATIC, 2003 – FULLY-PROGRAMMABLE DUAL COLUMN HORIZONTAL MITERING BAND SAW

Name: 12.2" X 15.7" BEHRINGER HBP310/403GA AUTOMATIC, 2003 - FULLY-PROGRAMMABLE DUAL COLUMN HORIZONTAL MITERING BAND SAW
SKU: 20801680971
Availability: OutOfStock

$21,700.00

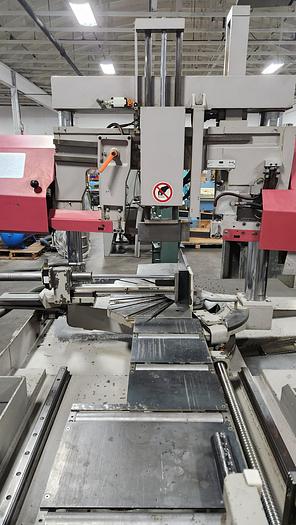

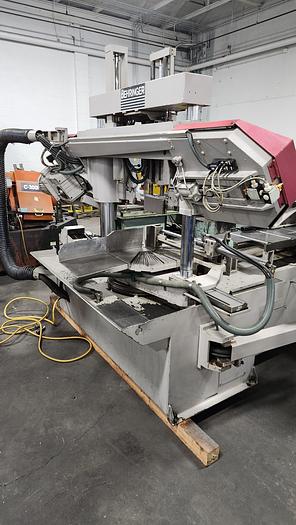

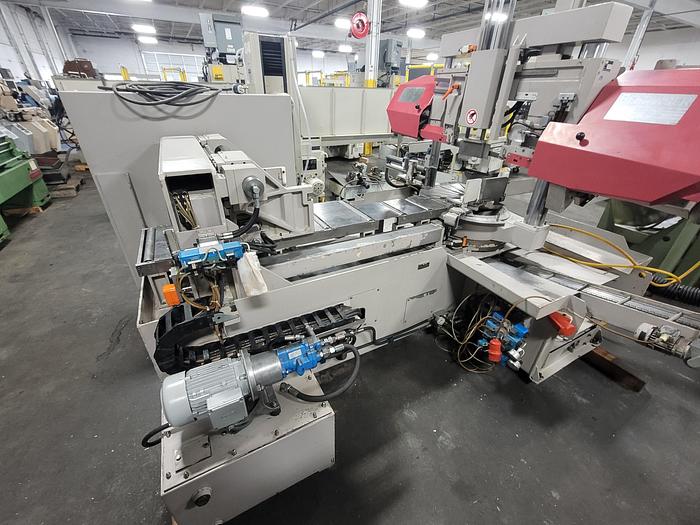

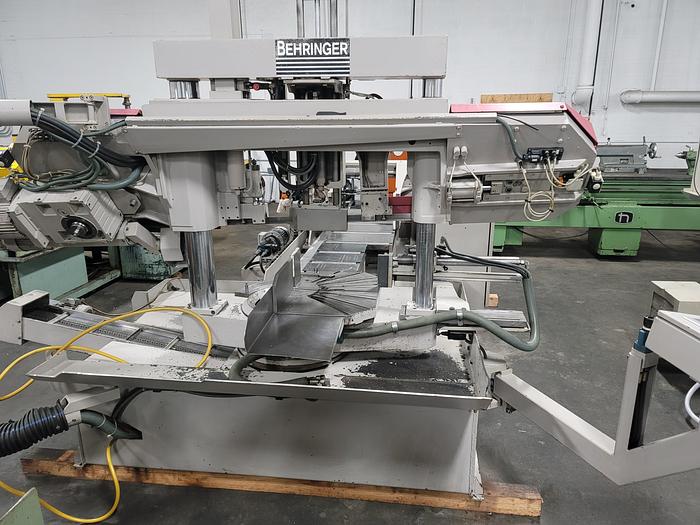

12.2" X 15.7" BEHRINGER HBP310/403GA AUTOMATIC, 2003 - FULLY-PROGRAMMABLE DUAL COLUMN HORIZONTAL MITERING BAND SAW - Image 2

12.2" X 15.7" BEHRINGER HBP310/403GA AUTOMATIC, 2003 - FULLY-PROGRAMMABLE DUAL COLUMN HORIZONTAL MITERING BAND SAW - Image 3

12.2" X 15.7" BEHRINGER HBP310/403GA AUTOMATIC, 2003 - FULLY-PROGRAMMABLE DUAL COLUMN HORIZONTAL MITERING BAND SAW - Image 4

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

12.2″ X 15.7″ BEHRINGER HBP310/403GA AUTOMATIC, FULLY-PROGRAMMABLE DUAL COLUMN HORIZONTAL MITERING BAND SAW

S/N: 703361

YEAR: 2003

MITERING

POWER SHUTTLE INFEED

HYDRAULIC CLAMPING

PROGRAMMABLE CONTROLS

PEDESTAL MOUNTED OPERATOR CONTROL CONSOLE

INFEED CONVEYOR

W/ (20IN” X 120IN”) CONVEYOR

CUTTING CAPACITY’S:

90°, 75°, 60° ROUND 12.2″ RECTANGLE 15.7″ X 12.2″

45° LEFT ROUND 12.2″ RECTANGLE 13.8″ X 12.2″

45° RIGHT ROUND 10.6″ RECTANGLE 10.6″ X 12.2″

30° LEFT ROUND 7.8″ RECTANGLE 7.8″ X 12.2″

MINIMUM ROUND .39″ RECTANGLE .39″ X .31″

SAW BLADE DIMENSION: 16’5″ X 1-1/4″ X .042″

MACHINE SIZE: LENGTH 130″ (SWIVEL RANGE 158”)

WIDTH: 111″

HEIGHT: 72″

WORKING HEIGHT: 31.5″

MACHINE WEIGHT: APPROX. 7,700 LBS
