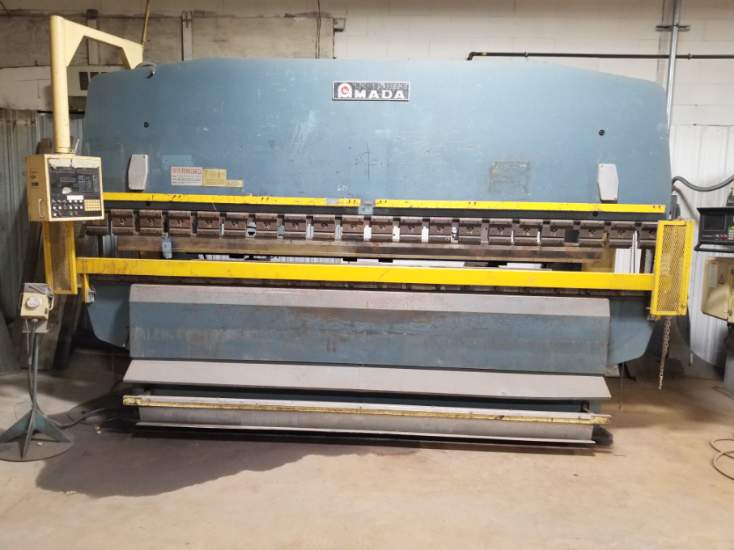

100 Ton x 13’ Amada RG-100L Press Brake, 1984- Tooling Included, Issues with CNC
$13,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity: 110 Ton
Overall Bending Length: 160″
Distance Between Housings: 122″
Stroke: 0″ – 3.94″
Open Height: 14.57″
Shut Height: 10.67″
Throat Depth: 15.76″
Ram Speeds:
Approach: 23″ Per Minute
Forming: 122” Per Minute
Return: 139” Per Minute
Overall Dimensions: 116″ x 60″ x 90″ High
Weight: 17000 lbs
Equipped With:

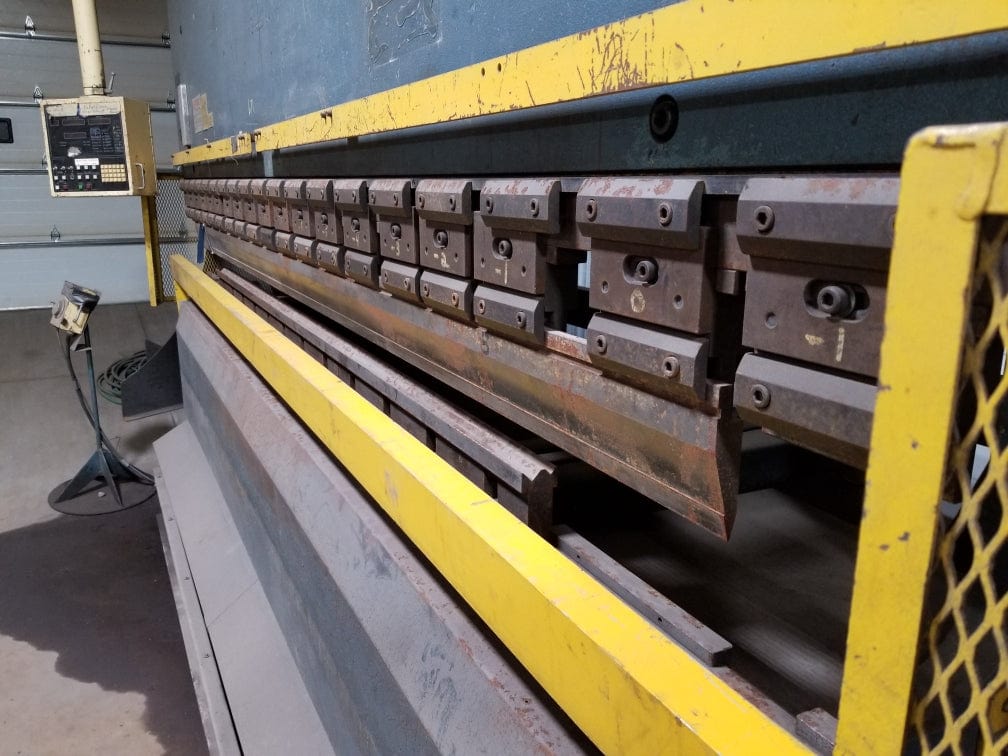

Punch and Die
**CNC Backgauge needs drives replaced. Machine operates as Manual Machine Only**
