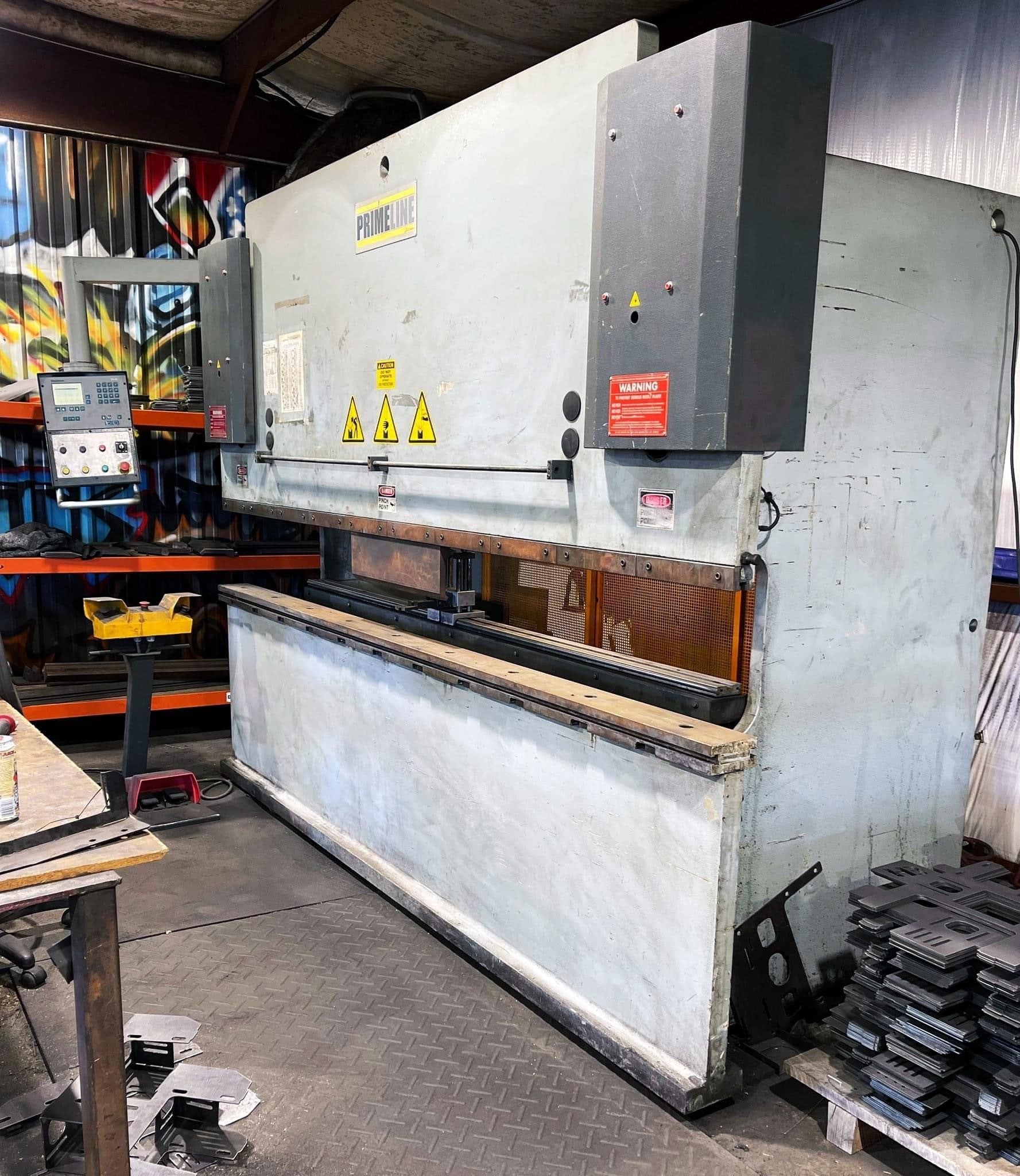

100 Ton X 10’ Baykal Primeline 10-100 CNC Press Brake, 2002- Delem DA-51 CNC Control

Name: 100 Ton X 10’ Baykal Primeline 10-100 CNC Press Brake, 2002- Delem DA-51 CNC Control
SKU: 4489773585
Availability: OutOfStock

$24,500.00

100 Ton X 10’ Baykal Primeline 10-100 CNC Press Brake, 2002- Delem DA-51 CNC Control - Image 2

100 Ton X 10’ Baykal Primeline 10-100 CNC Press Brake, 2002- Delem DA-51 CNC Control - Image 3

100 Ton X 10’ Baykal Primeline 10-100 CNC Press Brake, 2002- Delem DA-51 CNC Control - Image 4

100 Ton X 10’ Baykal Primeline 10-100 CNC Press Brake, 2002- Delem DA-51 CNC Control - Image 5

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Capacity – Tons: 100
Bending length – overall: 122.04″
Distance between housings: 100.39″
Stroke – adjustable: 7.48″ (Including screw adjustment)
Speeds of ram – inches per second:
Approach – 3.94
Bend – .35
Return – 2.95
Throat depth: 12.20″
Motor HP: 15
Tank capacity – gallons: 44.90
Approximately L x W x H – 133.85 x 52.36 x 92.5″

Equipped With:

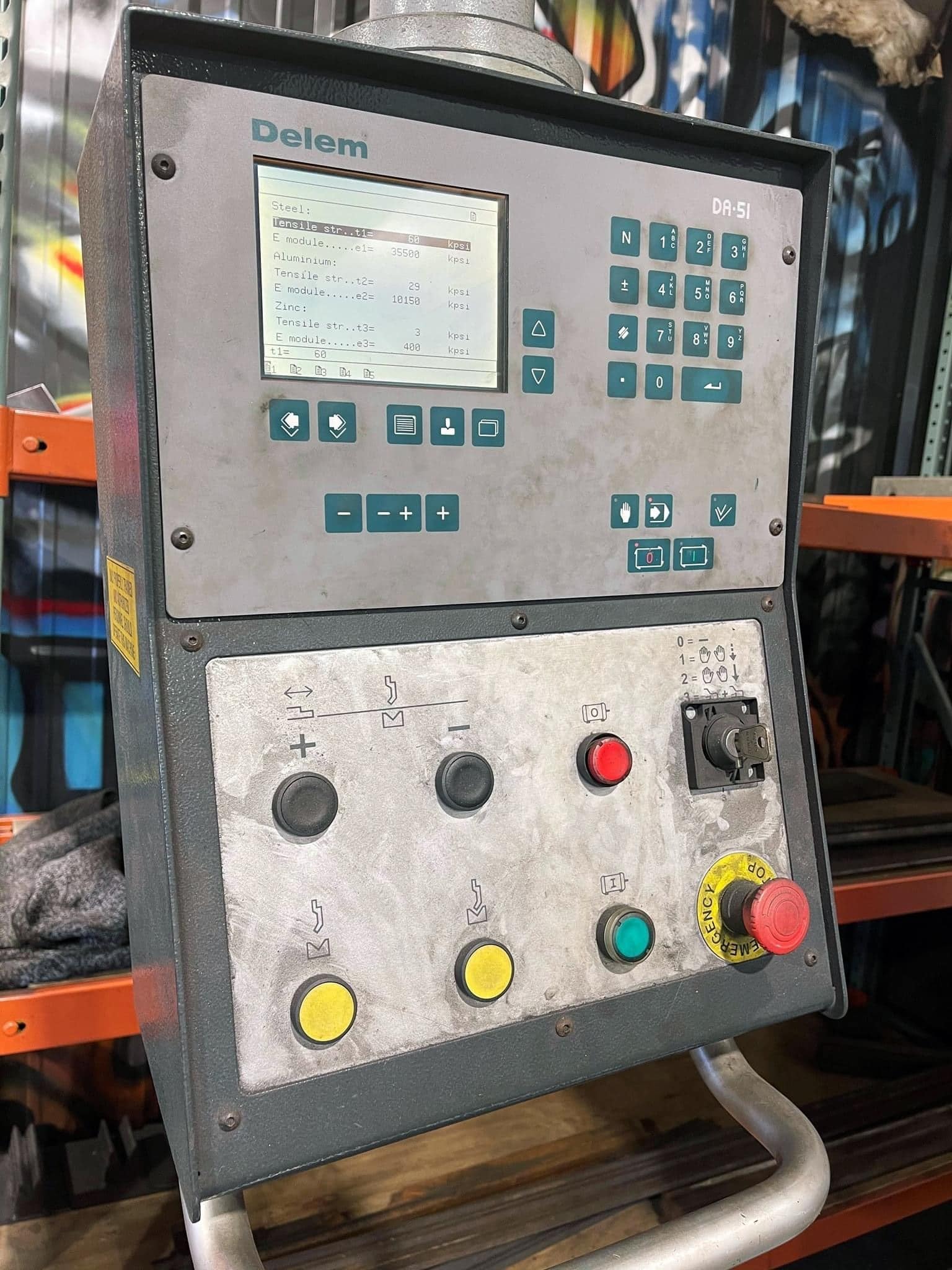

Delem DA-51 (Y, X CNC Controlled)
