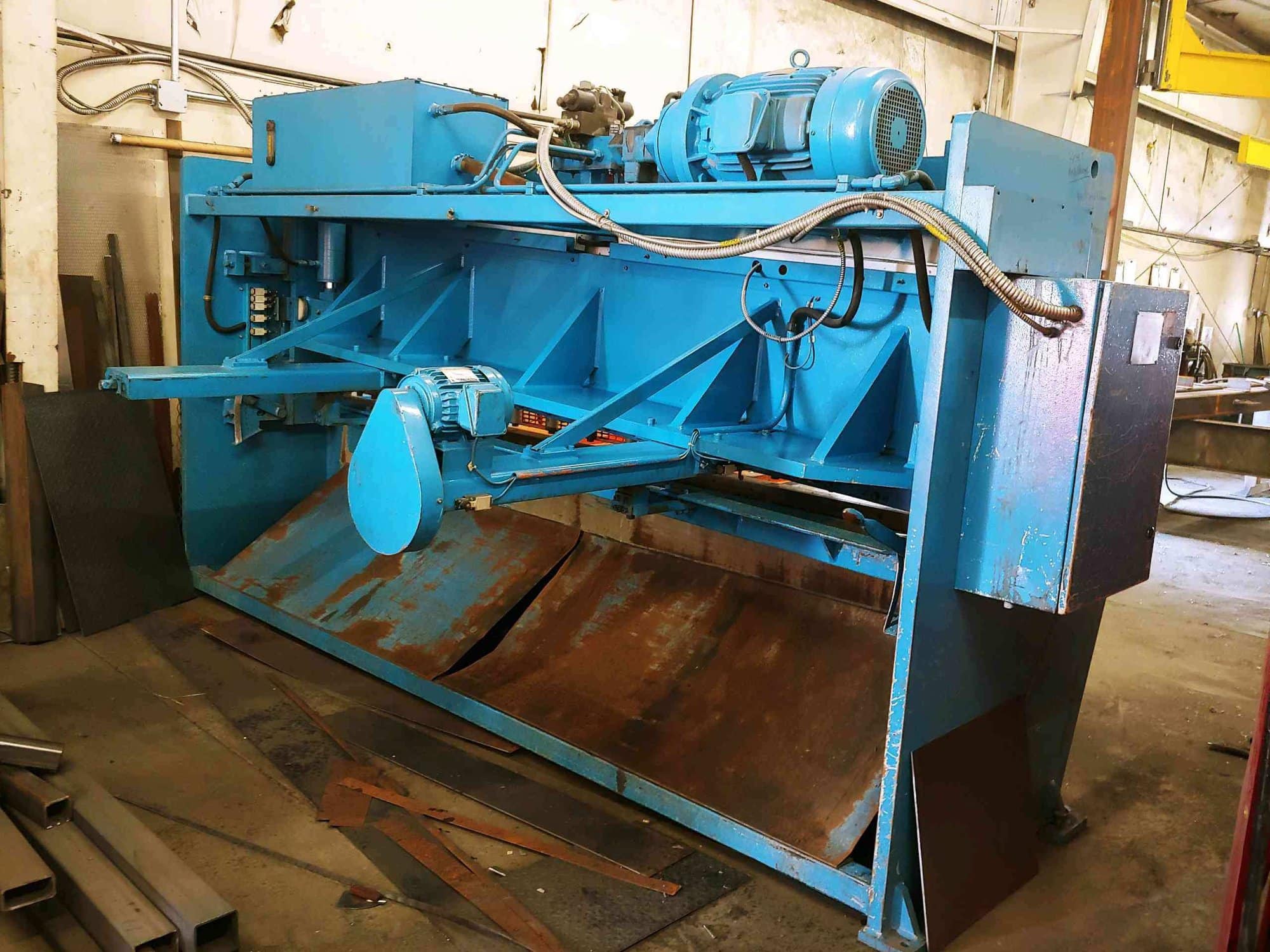

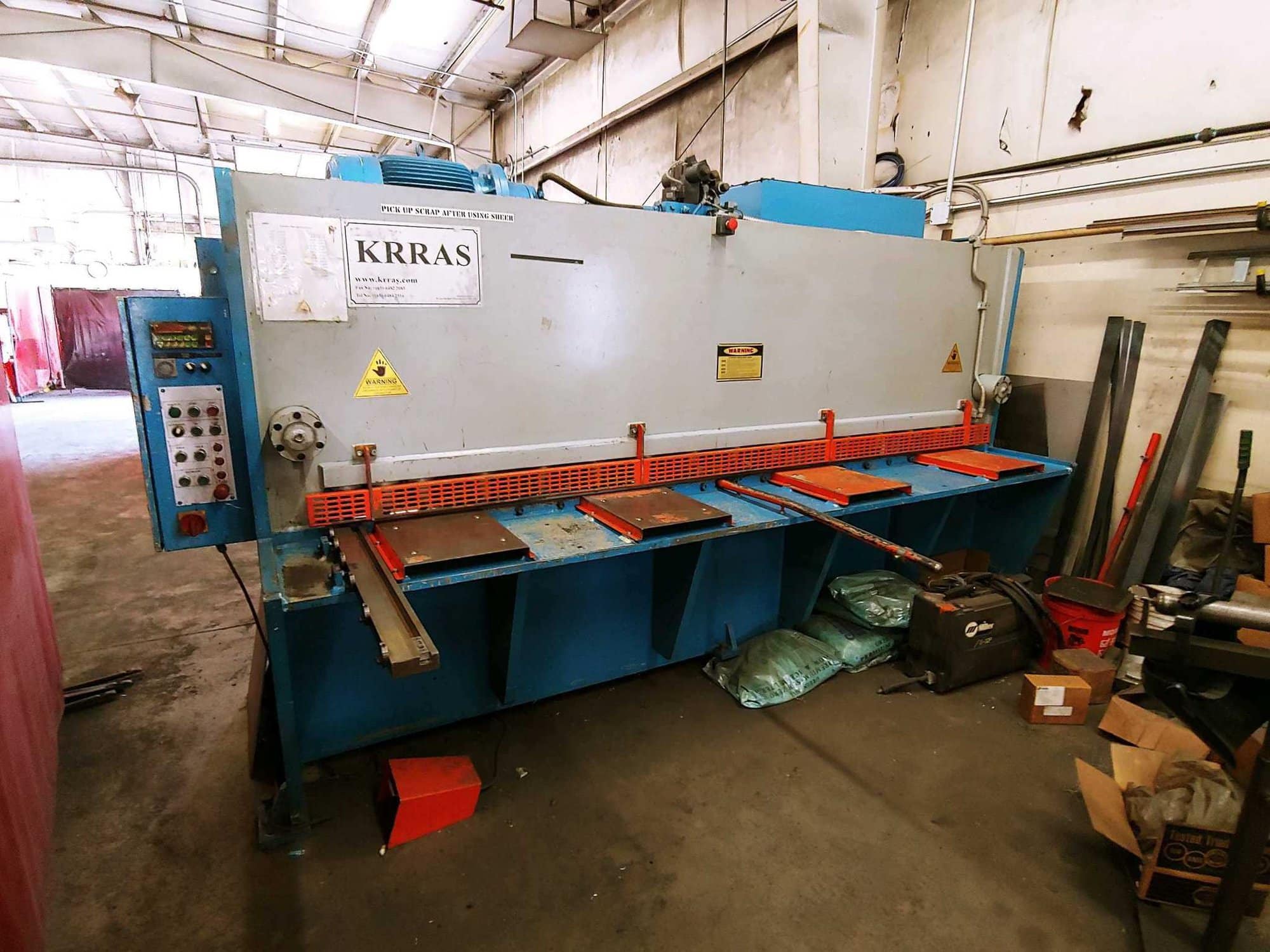

1/4″ X 10′ Krras RAS 306 CNC Shear, 2008- Programmable Backguage
$14,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Cutting Capacity Mild Steel: 1/4″
Cutting Capacity Stainless: 3/16″
Cutting Length: 120-1/16″
Variable Cutting Angle: 1 – 3 Degree
No. of Hold Downs: 17
No. of Stroke / Min SPM: 8 / 10
Back Gauge Range: 33″
Motor: 15 HP
Machine Dimensions: 148″ x 70″ x 85″
Weight: 12,100 LBS
Voltage: 220V/3 phase
Equipped With:

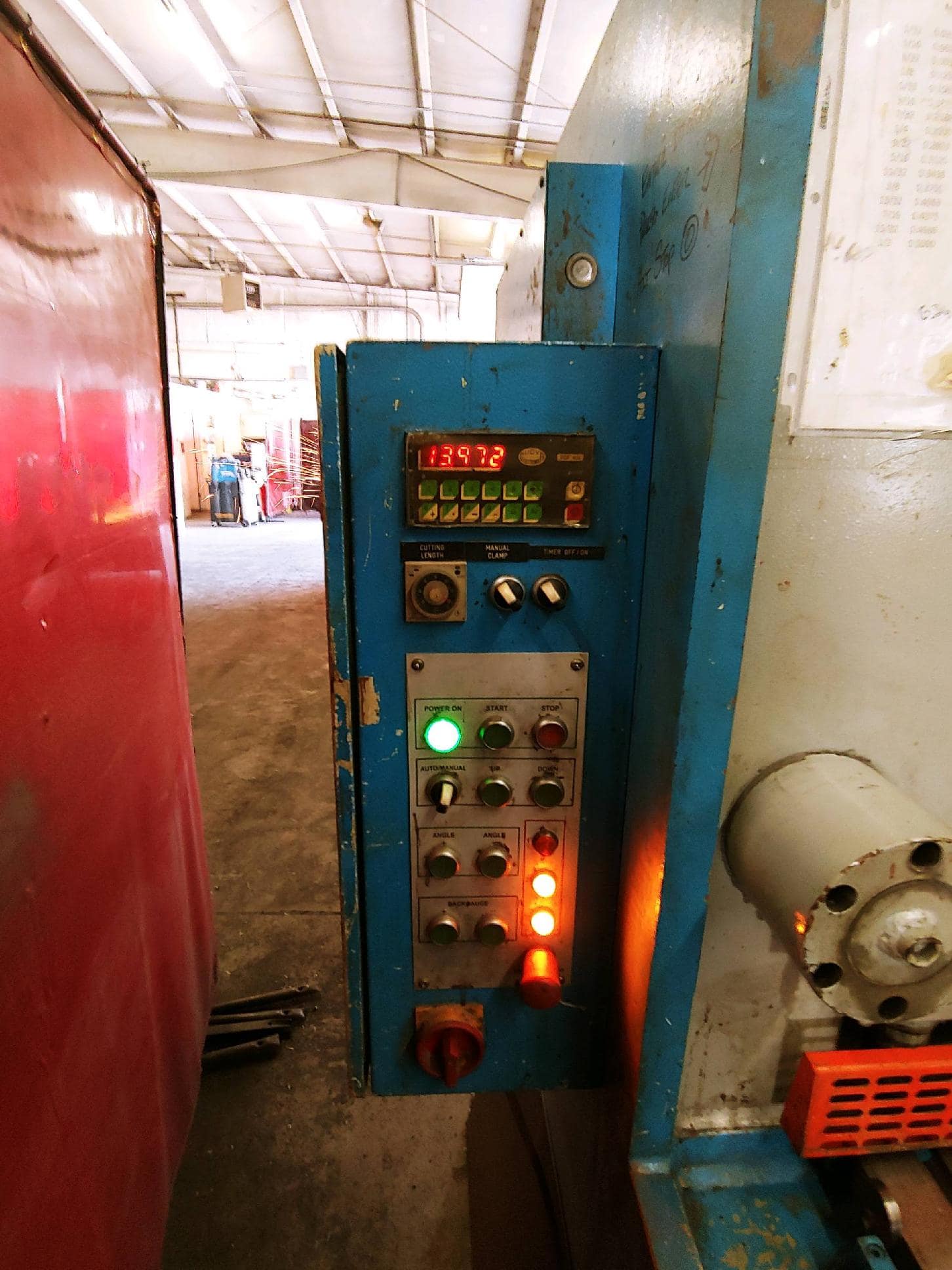

PGP 401 NC Controller
Variable rake angle adjustment
Rapid blade gap adjustment
Front operated motorized back gauge range to 33″
Shadow line lighting & well designed finger guard for clear view of cutting line
Safety foot switch operation
39″ side squaring arm
Independent clamping of individual hold downs
