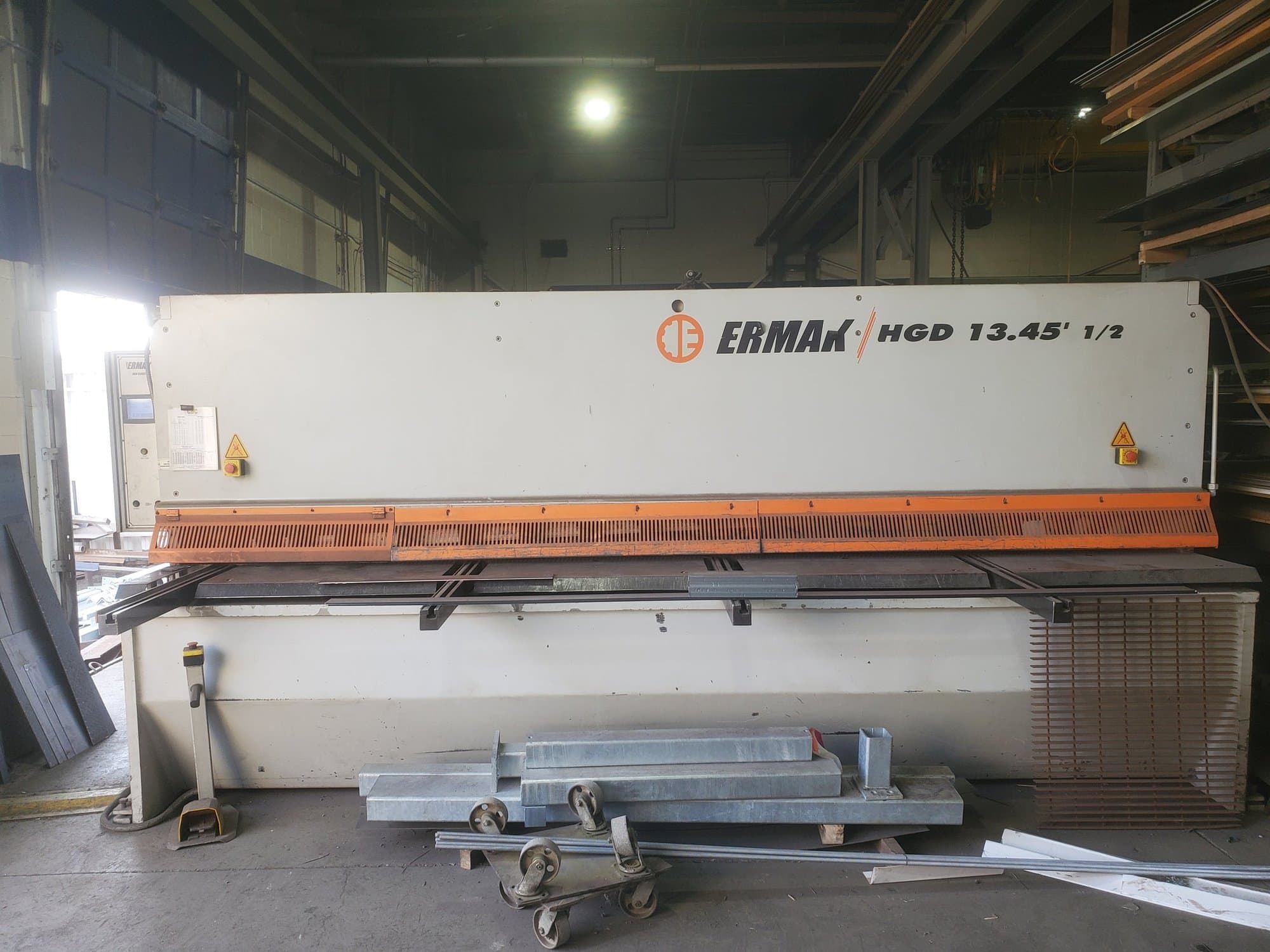

1/2″ x 13′ Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports

Name: 1/2" x 13' Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports
SKU: 5265554760
Availability: OutOfStock

$25,000.00

1/2" x 13' Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports - Image 2

1/2" x 13' Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports - Image 3

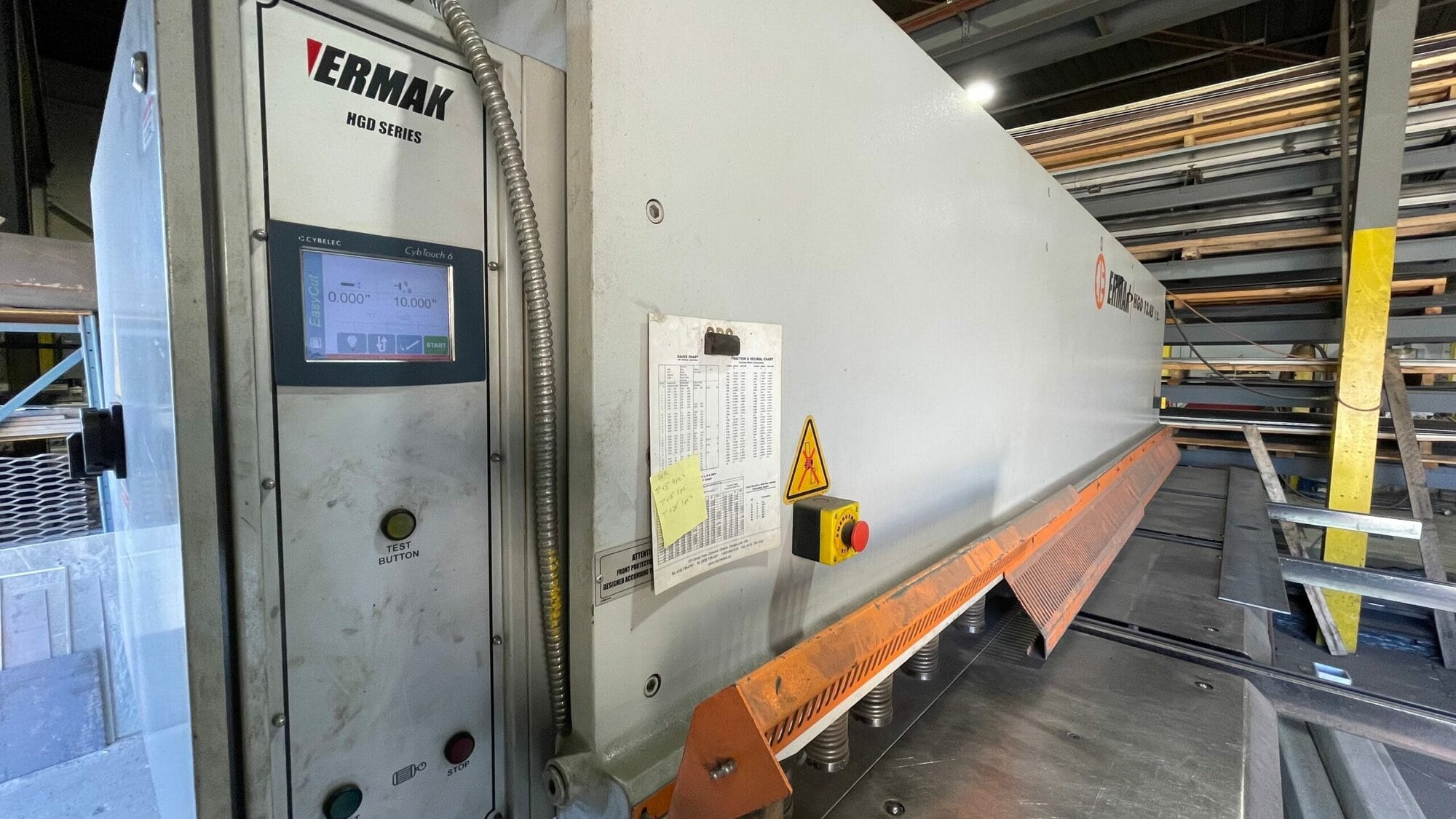

1/2" x 13' Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports - Image 4

1/2" x 13' Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports - Image 5

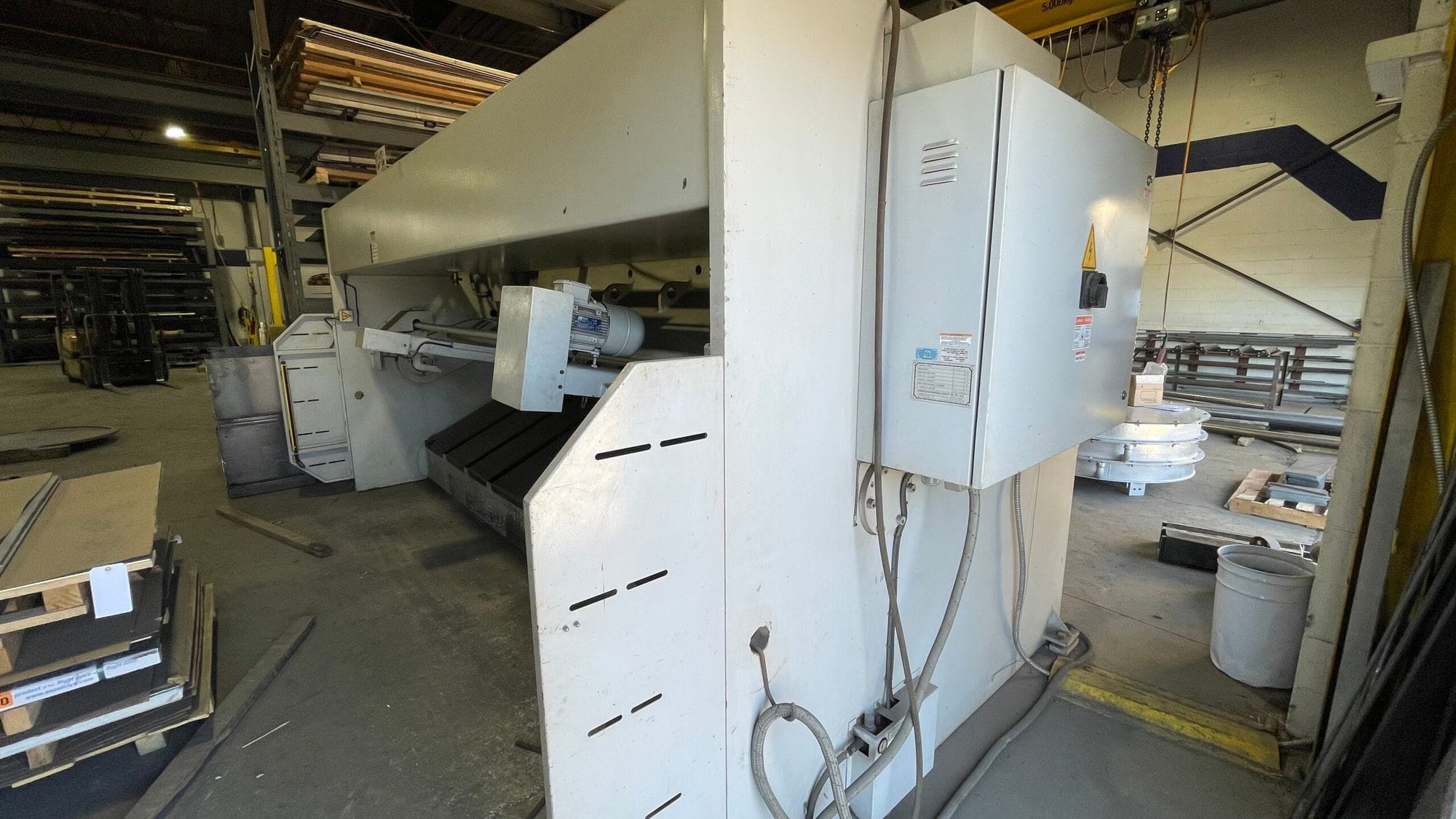

1/2" x 13' Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports - Image 6

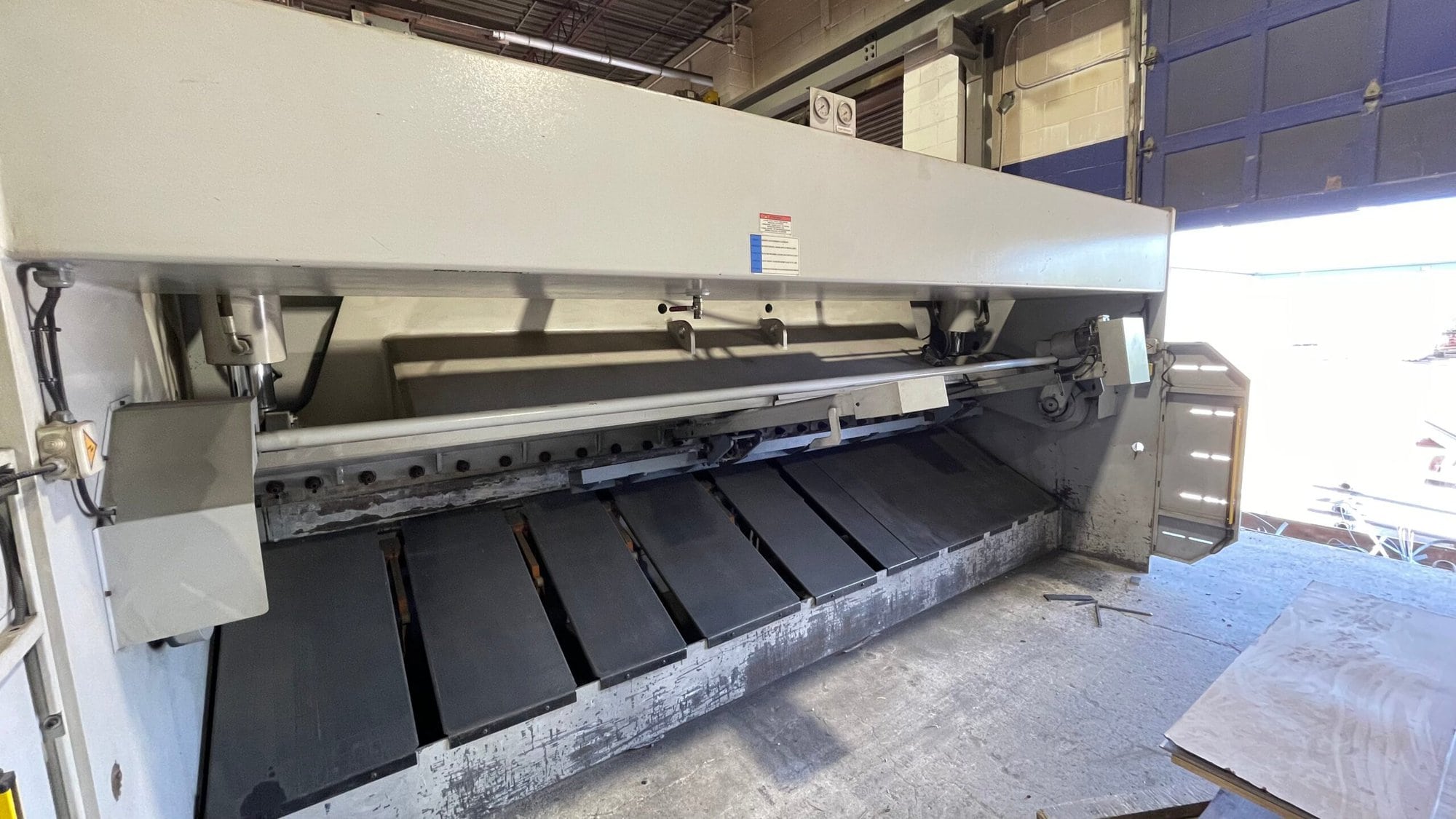

1/2" x 13' Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports - Image 7

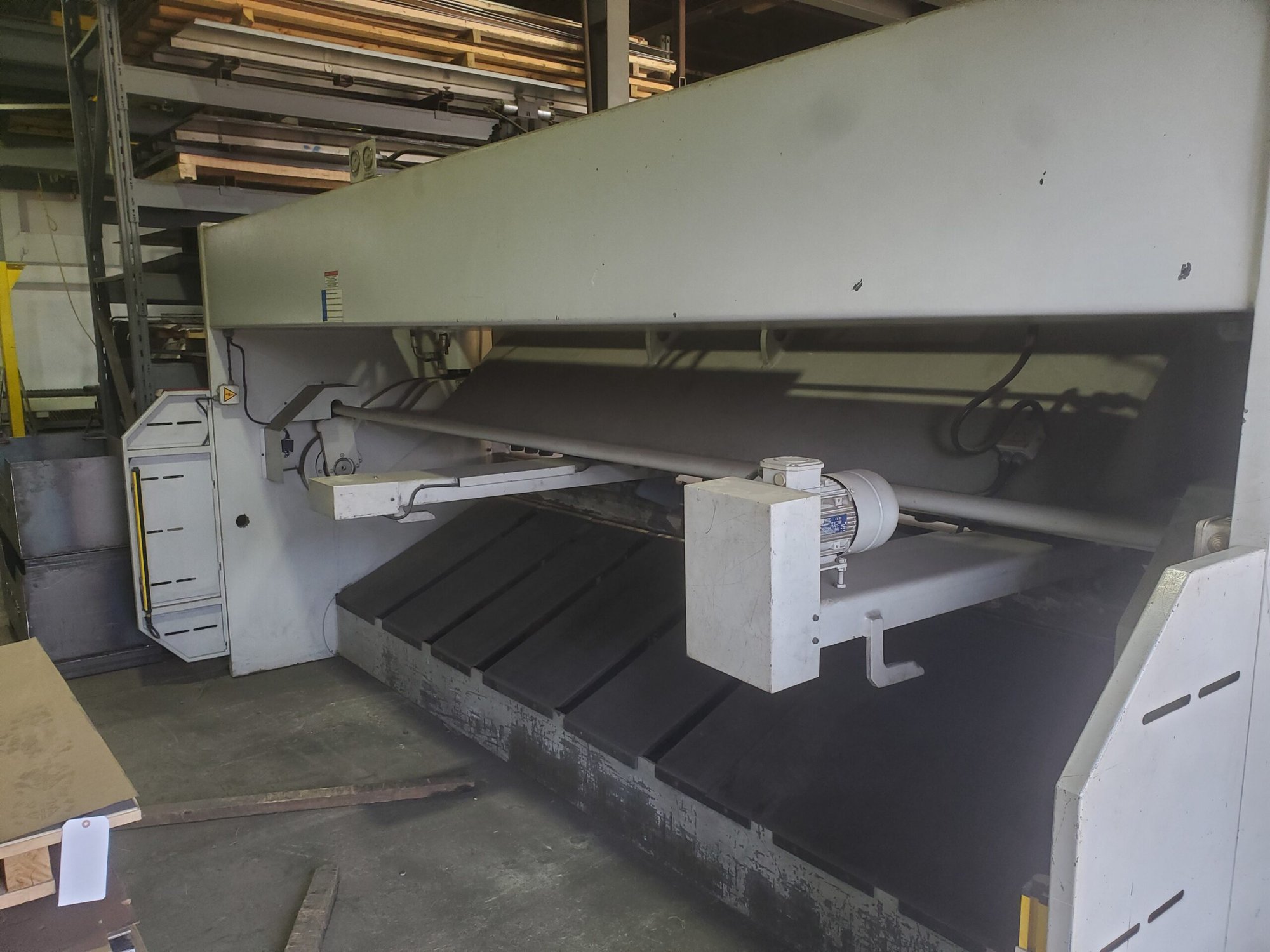

1/2" x 13' Ermak HGD Swing-Beam Shear, 2014- CNC Adjustable Blade Gap, Pneumatic Rear Sheet Supports - Image 8

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Overall Cutting Length: 13.45′
Max Cutting Capacity: 1/2″
Speed: 9 Spm
Back Gauge Range: 39.37″
Main Motor: 30 Hp
Dimensions: 200.79″ X 92.52″ X. 91.93″
Approx Weight: 31,000 Lbs.

Equipped With:

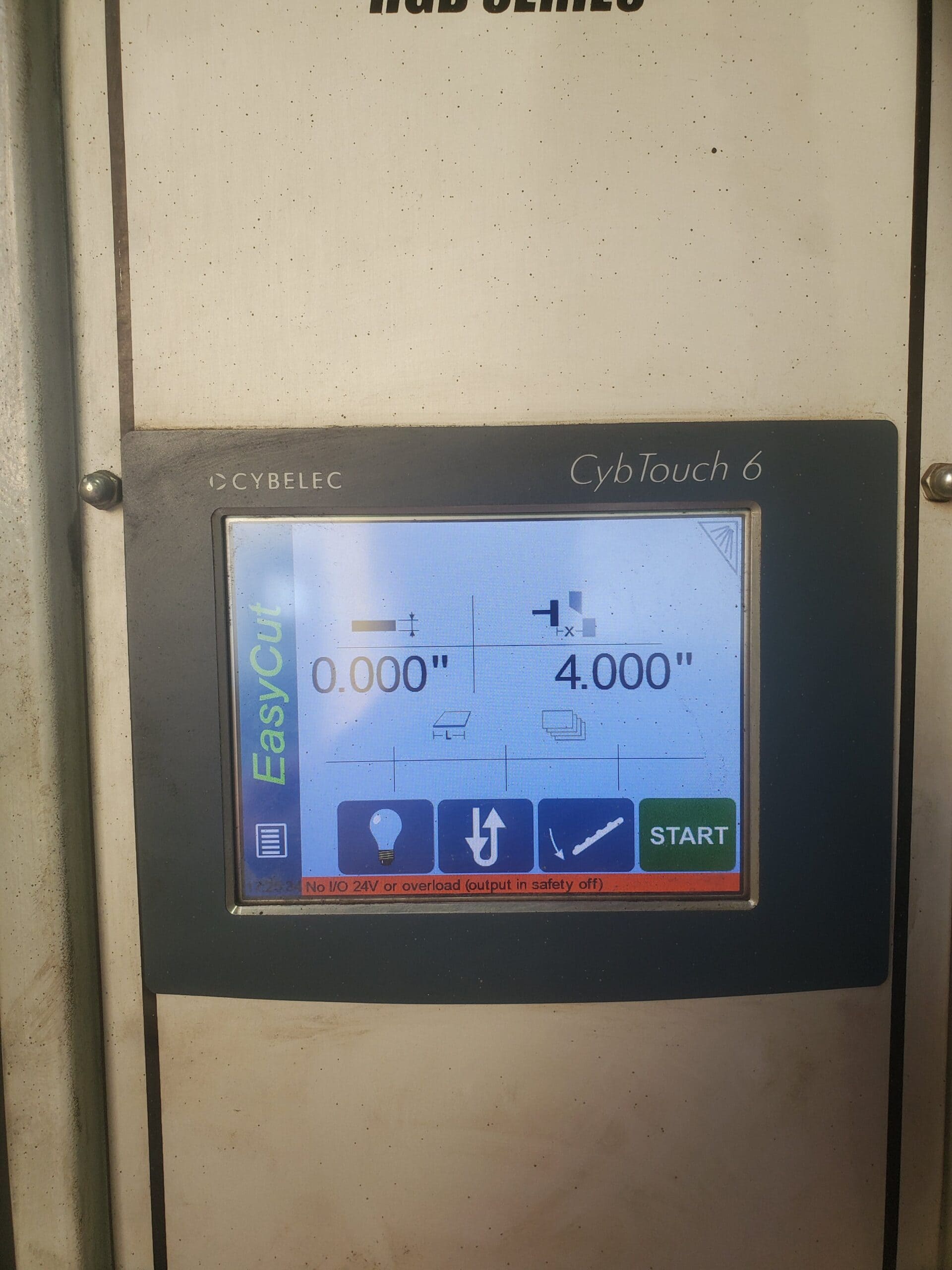

Cybelec Cybtouch 6 Control
Cnc Adjustable Blade Gap
Squaring Arm & 3 Additional Front Stop Arms With Rulers And Tilting Stops.
Ball Transfers In The Table For Easy Plate Handling
Gap In The Side Frame For Slitting
Motorized Swing Up Back Gauge Feature Allows Cutting Longer Parts Than 39” Without Interference From The Gauge Bar.
Pneumatic Sheet Support System Up To 3/16”
